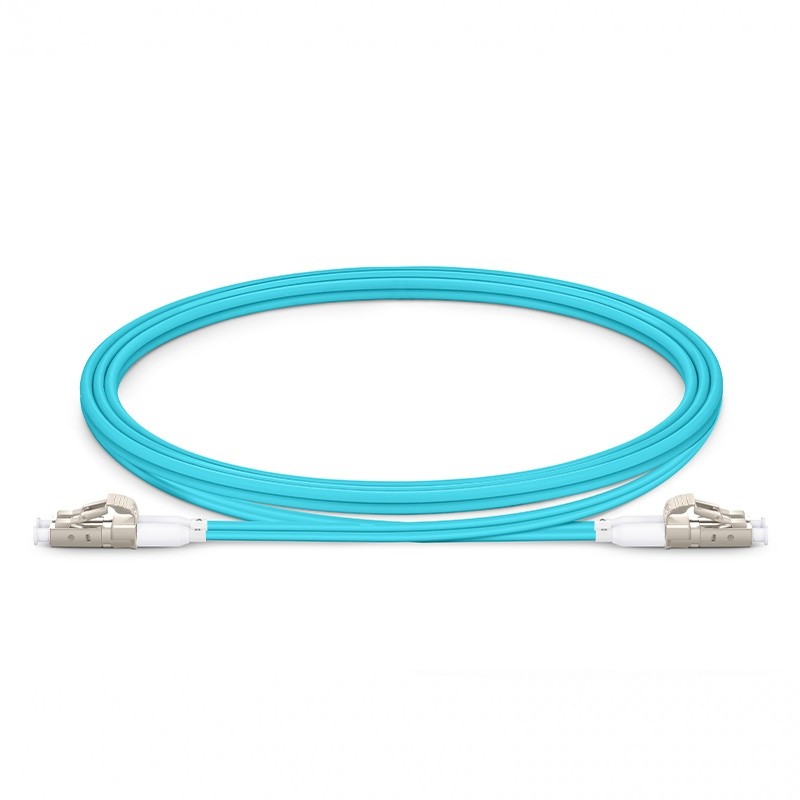

Patch cord Multimode OM3 LC UPC -LC UPC Duplex 3.0MM LSZH Aqua 3M

Patch cord Multimode OM3 LC UPC -LC UPC Simplex 3.0MM LSZH Yellow 3M
LSZH OR PVC
Length
Diameter
Color
Can customized according to customer request

Patch cord Multimode OM3 LC UPC -LC UPC Duplex 3.0MM LSZH Yellow 3M

Description

Fiber optic patch cord, also called fiber patch cable, fiber jumper, or fiber patch lead, is a length of fiber cable that terminated with fiber optic connectors (LC, SC, MTRJ, ST and etc.) at each end. The connectors allow fiber optic patch cord to be rapidly connected to an optical switch or other telecommunications/computer device. Fiber jumper is a key player for indoor use, like in server rooms or in data centers. fiber patch cord has ranked the best choice for applications where conventional copper cables fail to reach.

Specifications

Item	OM3 LC-LC Fiber optic patch cord
Ferrule end-face	PC UPC APC for option
Connector type	FC,SC,LC,ST,MTRJ,MU,E2000,MPO
Cable type	Duplex/LSZH
Mode	Multimode OM3
Cable diameter	0.9mm,2.0mm,3.0mm for option
Insertion loss	≤0.2 and ≤0.3dB
Return loss	≥50 and ≥55dB
Exchangeability	≤0.2dB
Vibration	≤0.2dB
Operating temperature	-40 to 75℃
Storage temperature	-45 to 85℃
Tensile force	50N/static state 30N/used state
