Mini ADSS Fiber Cable ASU Fiber cable

Outdoor Fiber Optical Cable  Mini ADSS Fiber Cable ASU
Non-armoured G652D SM 8 16 Core 50m Pole Span PE

Product Description:

Mini ADSS Fiber Cable ASU Span 80m/100m/120m

Descriptions

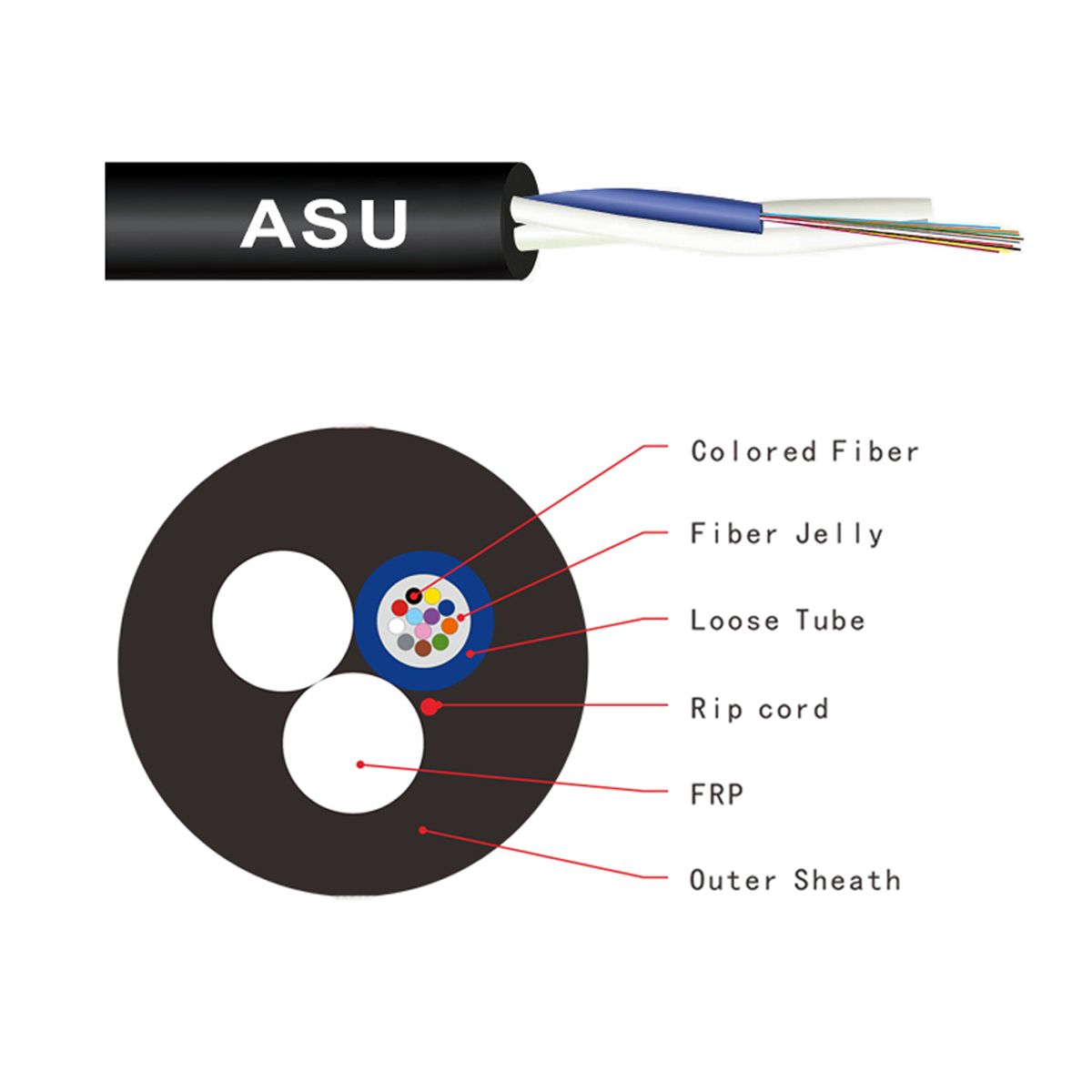

ASU optical cable, or All-Dielectric Self-Supporting Utility cable, is designed for aerial installations where no additional support or messenger wires are needed. It’s entirely non-metallic, which makes it immune to electromagnetic interference, ideal for environments close to electrical power lines.

Technical data

No. of cable			2- 12	24
Fiber Model			G657A1
Strength Member	Material		FRP
	Diameter ( ±0.05）mm		1.5
Loose Tube	Material		PBT
	Diameter ( ±0. 1）mm		2.0	2.8
	Thickness ( ±0.05）mm		0.32
Outer Sheath	Material		MDPE
Cable Diameter ( ±0.2）mm			6.3	7.0
Cable Weight ( ±5）kg/km			30	42
Span			50m
Min. bending radius		Without Tension	10.0×Cable- φ
		Under Maximum Tension	20.0×Cable- φ
Temperature range (℃)		Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70
