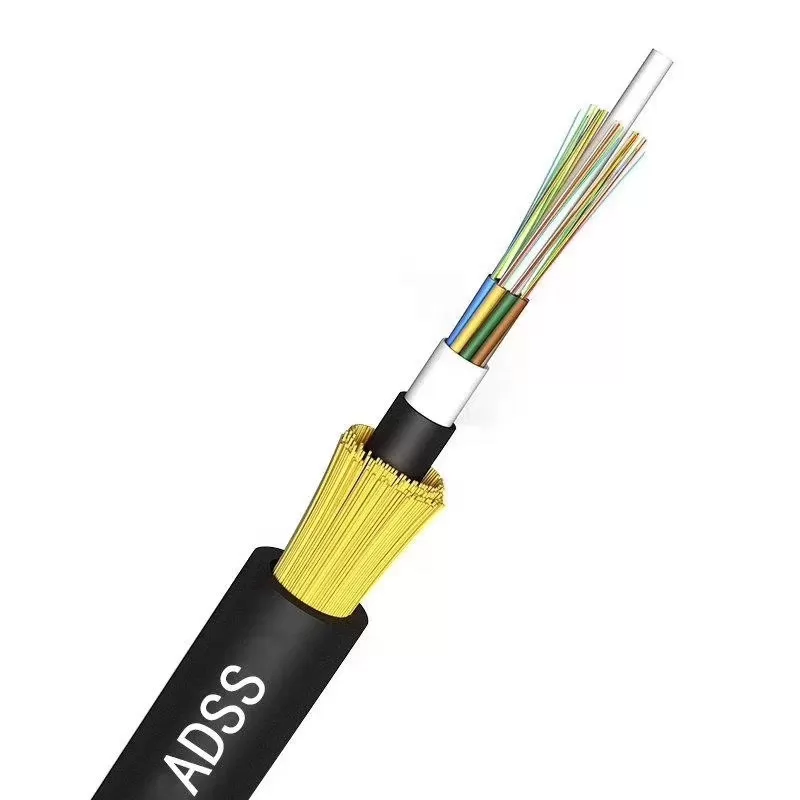

Fiber optic ADSS cable single jacket

Outdoor Aerial ADSS cable
HDPE
Span 100m
2-288cores

Product Description:

All Dielectric Self Supporting (ADSS) Cable

Descriptions

All Dielectric Self Supporting cable or more commonly referred to as ADSS cable is a type of fiber optic cable that is used in aerial applications. This type of cable does not need a messenger to support it, so it can be installed in a single pass. This cable construction does not contain any metallic elements so it is also non-conductive.

Product Standard

（1）According to IEC-60794-4-20:2012

Operating Temperature

-40℃~+70℃

Application

（1）All dielectric self-supporting aerial

（2）Electrical system or frequently lightning areas

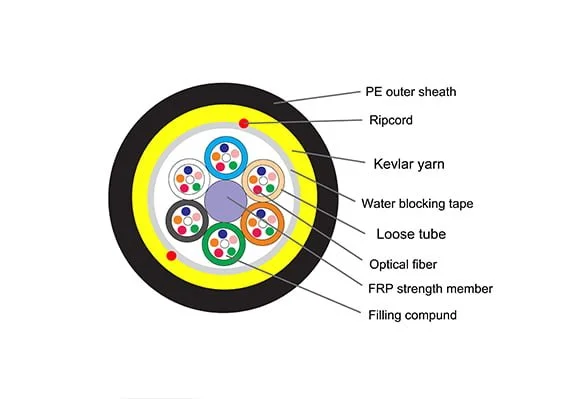

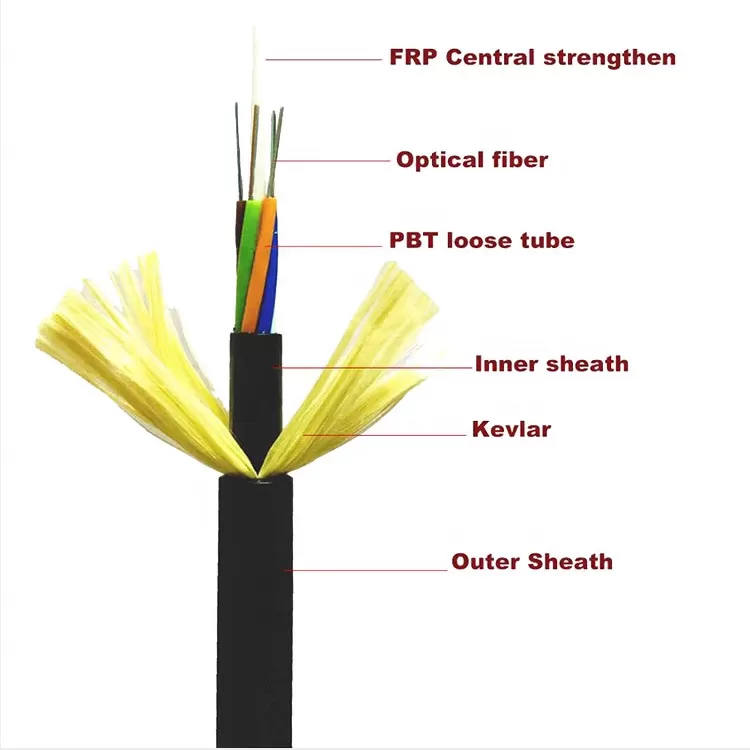

Cable Constructions

Technical Specification

Fiber Count	6/12F	24F	36F	48F	72F	96F	144F	192F
OD of Loose Tube (mm )	2	2	2	2	2	2	2	2
Max Fiber Count/tube	12	12	12	12	12	12	12	12
NO. Of Tube	1	2	3	4	6	8	12	16
NO. Of Filler	5	4	3	2	0	0	0	2
FRP/Coat(mm)	2.1	2.1	2.1	2.1	2.1	2. 1/3.5	2. 1/6.0	2.1
Water Blocking Material	Water Blocking Tape/Yarn
Reinforced Materials	Aramid Yarn
PE Sheath Thickness	1.7±0.2
OD of Cable	10	10	10	10	10	11.4	13.9	14.5
Net weight ( kg/km)	80	80	80	80	80	100	150	154
RTS (N)	3500					4000	6000	8750
MAT (N)	1400					1900	2600	3500
