Patch cord LC UPC -LC APC Duplex 2.0MM LSZH Yellow 3M

Patch cord LC UPC -LC UPC Duplex 3.0MM LSZH Yellow 3M
LSZH OR PVC
Length
Diameter
Color
Can customized according to customer request

Product Description:

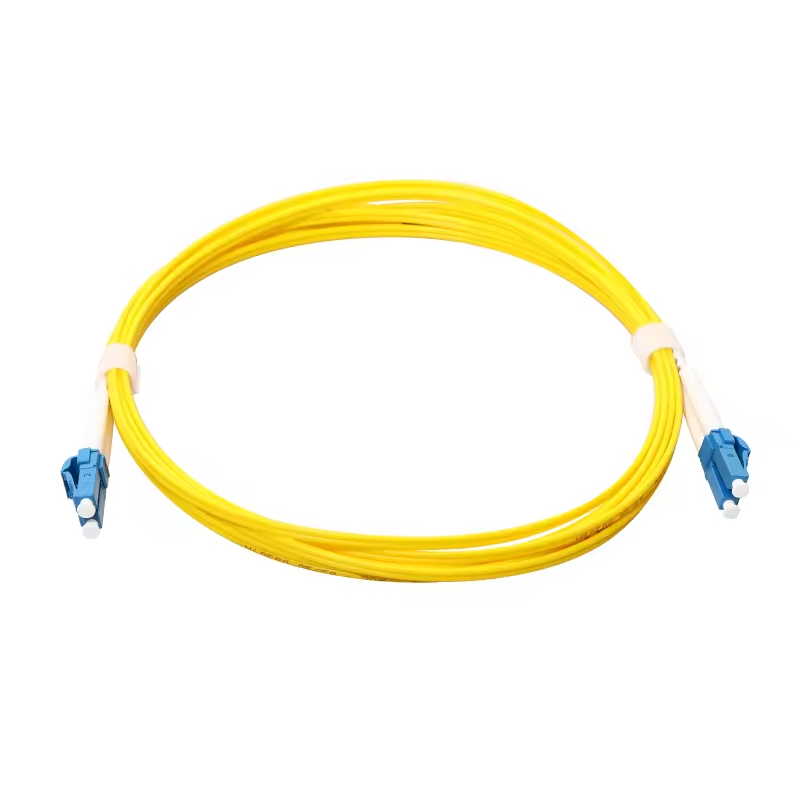

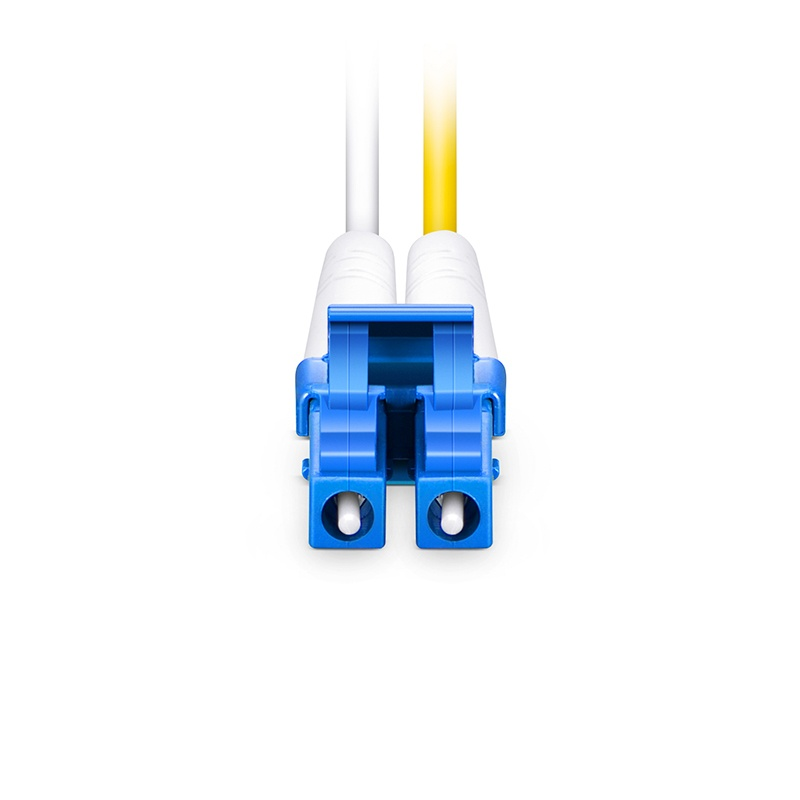

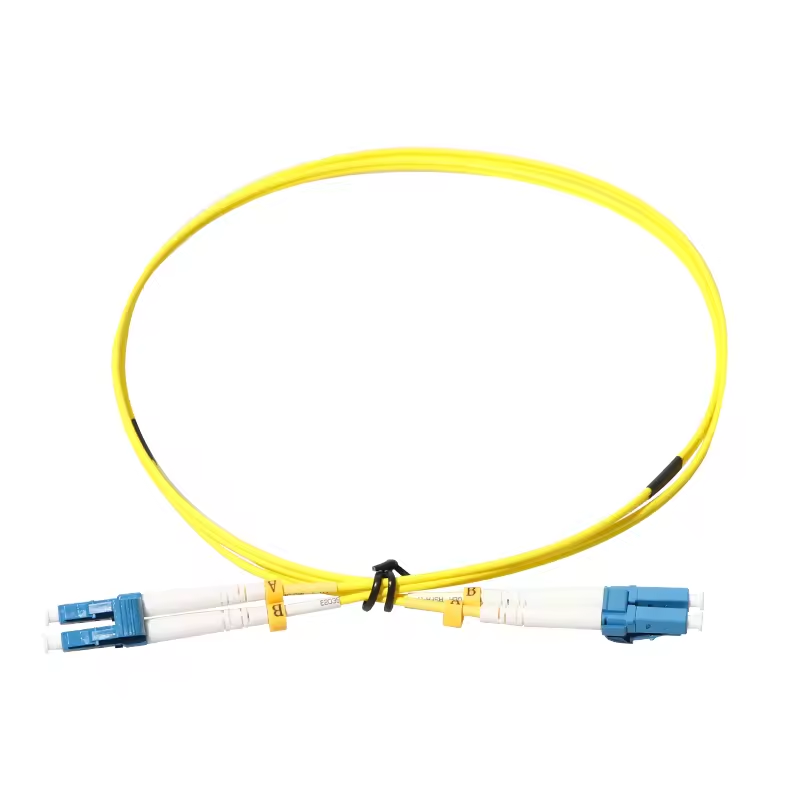

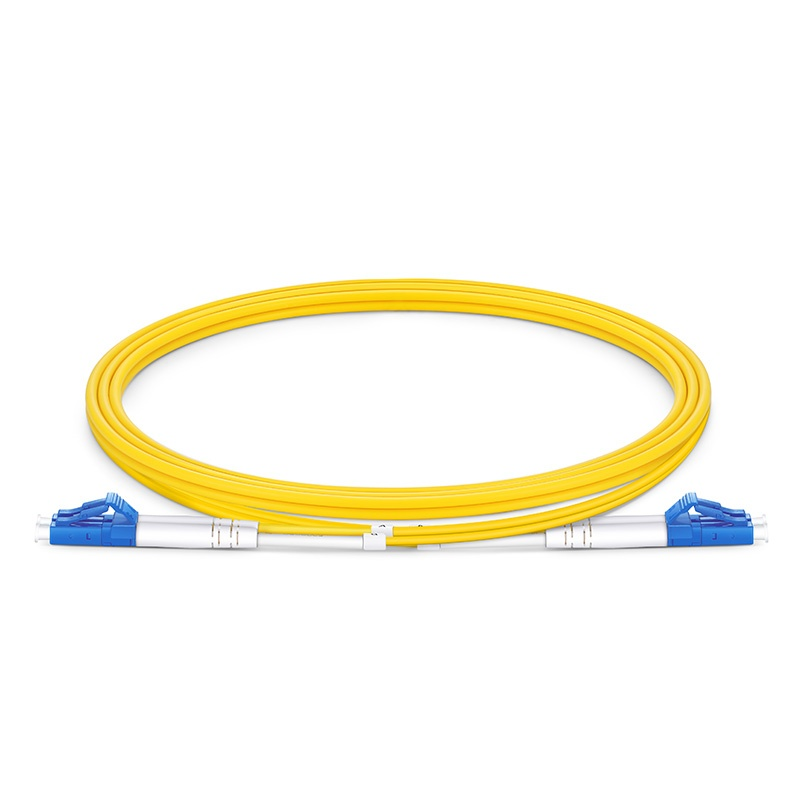

Patch cord LC UPC -LC UPC Duplex 2.0MM LSZH Yellow 3M

Description

Fiber optic patch cord, also called fiber patch cable, fiber jumper, or fiber patch lead, is a length of fiber cable that terminated with fiber optic connectors (LC, SC, MTRJ, ST and etc.) at each end. The connectors allow fiber optic patch cord to be rapidly connected to an optical switch or other telecommunications/computer device. Fiber jumper is a key player for indoor use, like in server rooms or in data centers. fiber patch cord has ranked the best choice for applications where conventional copper cables fail to reach.

Specifications

Item	LC-LC Fiber optic patch cord
Ferrule end-face	PC UPC APC for option
Connector type	FC,SC,LC,ST,MTRJ,MU,E2000,MPO
Cable type	SX/LSZH
Mode	SM:9/125(G652D)
Cable diameter	0.9mm,2.0mm,3.0mm for option
Insertion loss	≤0.2 and ≤0.3dB
Return loss	≥50 and ≥55dB
Exchangeability	≤0.2dB
Vibration	≤0.2dB
Operating temperature	-40 to 75℃
Storage temperature	-45 to 85℃
Tensile force	50N/static state 30N/used state

Features

excellent reliability

superior adaptability

improved security

Applications

Server rooms

Data center

LAN network

FTTH,GPON,Telecommunications

Tags: Duplex LC UPC patch cord LSZH Yellow G652D G657A2 PVC 30mm length
