Fiber fusion machine Ai-9

Descriptions

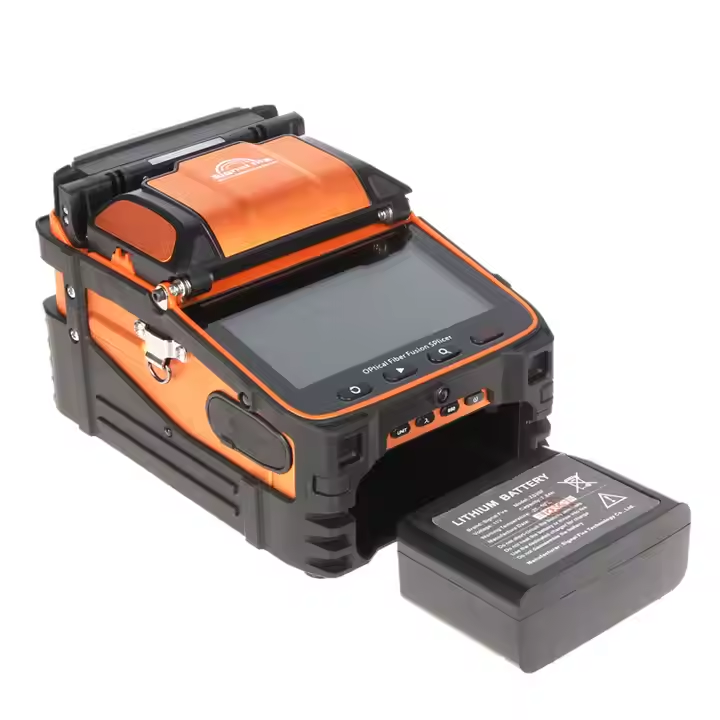

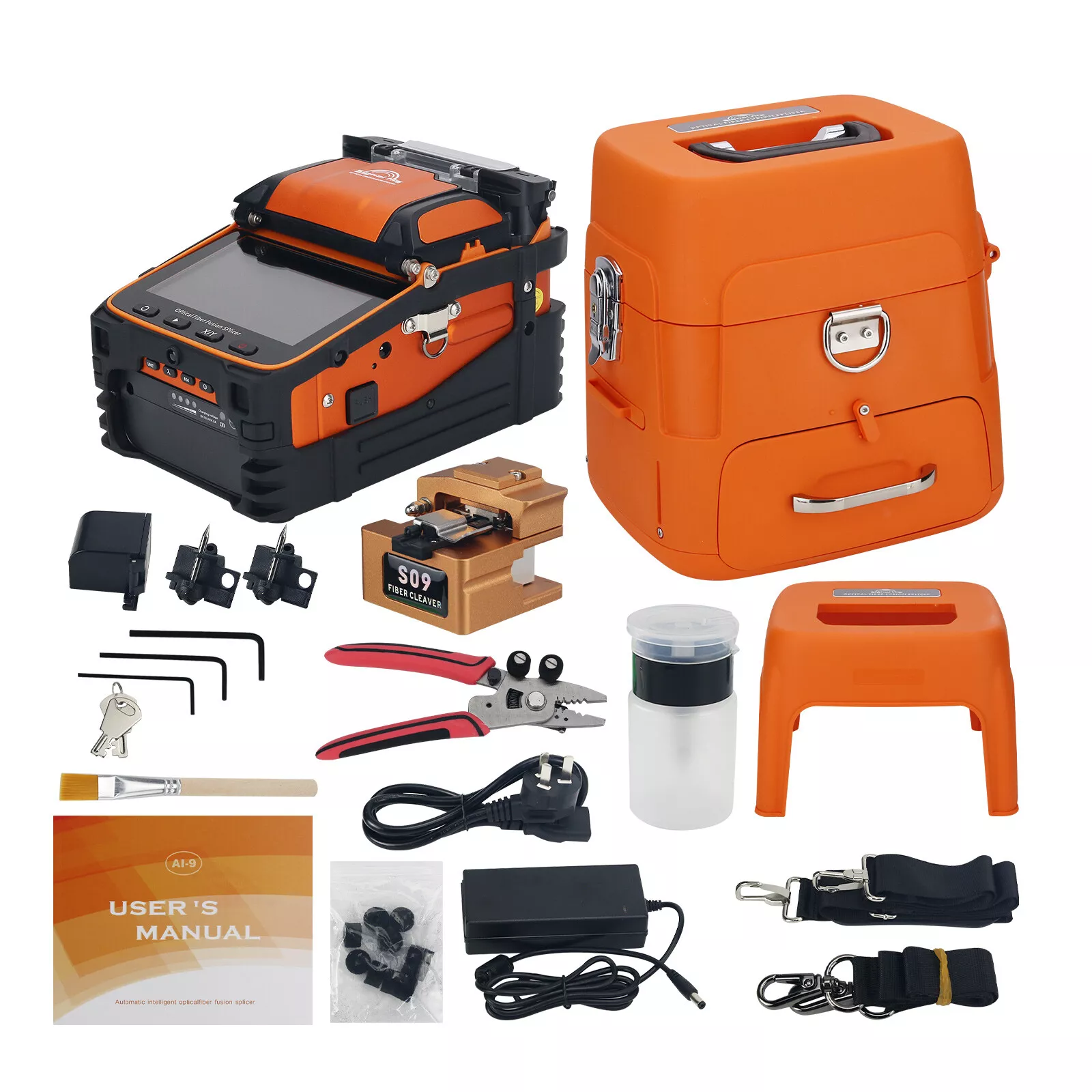

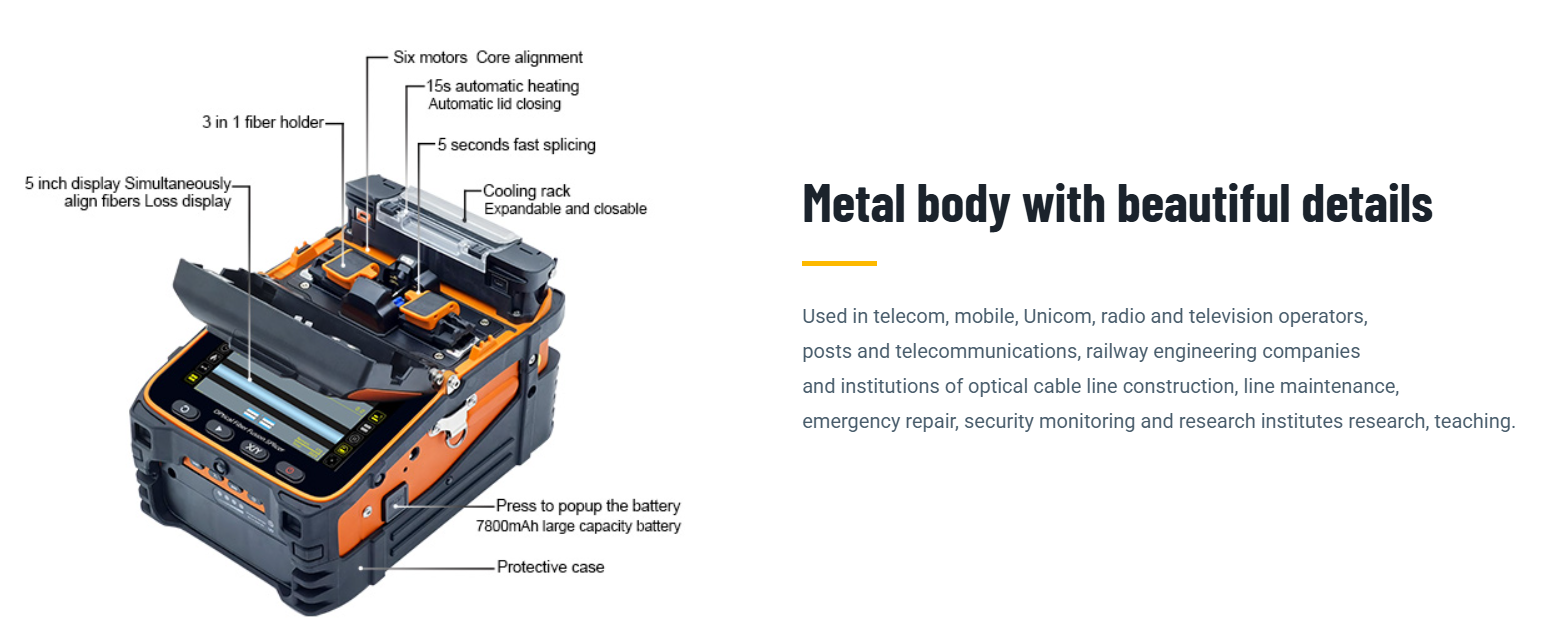

Al-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiberfusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, securitymonitoring and other fiber cable splicing projects.

The machine uses industrial quad-core CPU, fast response, iscurrently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, theoperation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observethe fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiencyincreased by 50% compared to ordinary splicing machines.

Under the conditions of rigorous testing, theperformance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The designof operating platform reflects the humanistic care, unique lighting design, it is convenient for night constructionor repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. Thecore parts are using imported brands, aviation metal body material with exquisite details. With the combinationof advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliableand comfortable user experience.

Specifications

Fiber alignment	Core/cladding
Motor number	6 motors
Splicing time	5s
Heating mode	15s， can be customized according to the external environment
Fiber type	Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;
The cladding diameter	80-150μm
Splicing loss	0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Splicing mode	Automatic focusing core alignment, conventional/high precision welding
Splicing way	Automatic, semi-automatic
Fiber holder	Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable

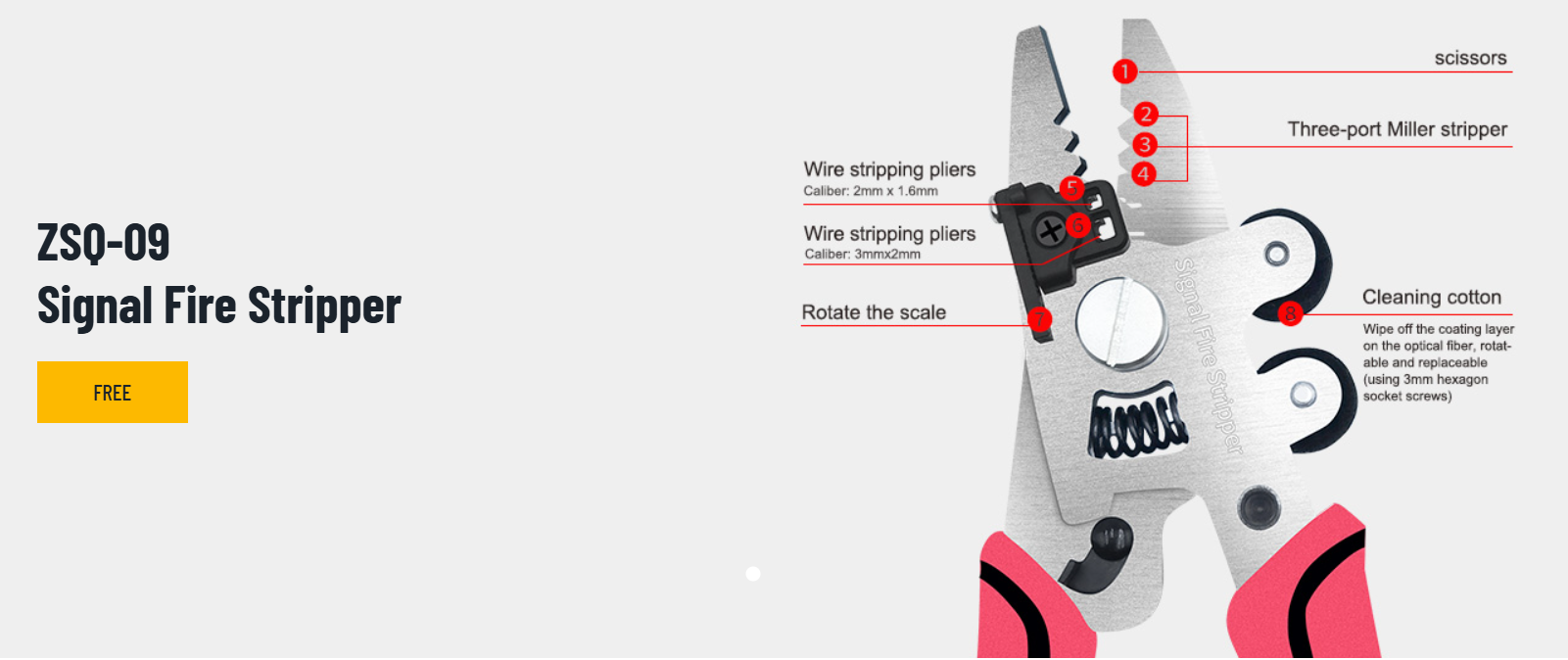

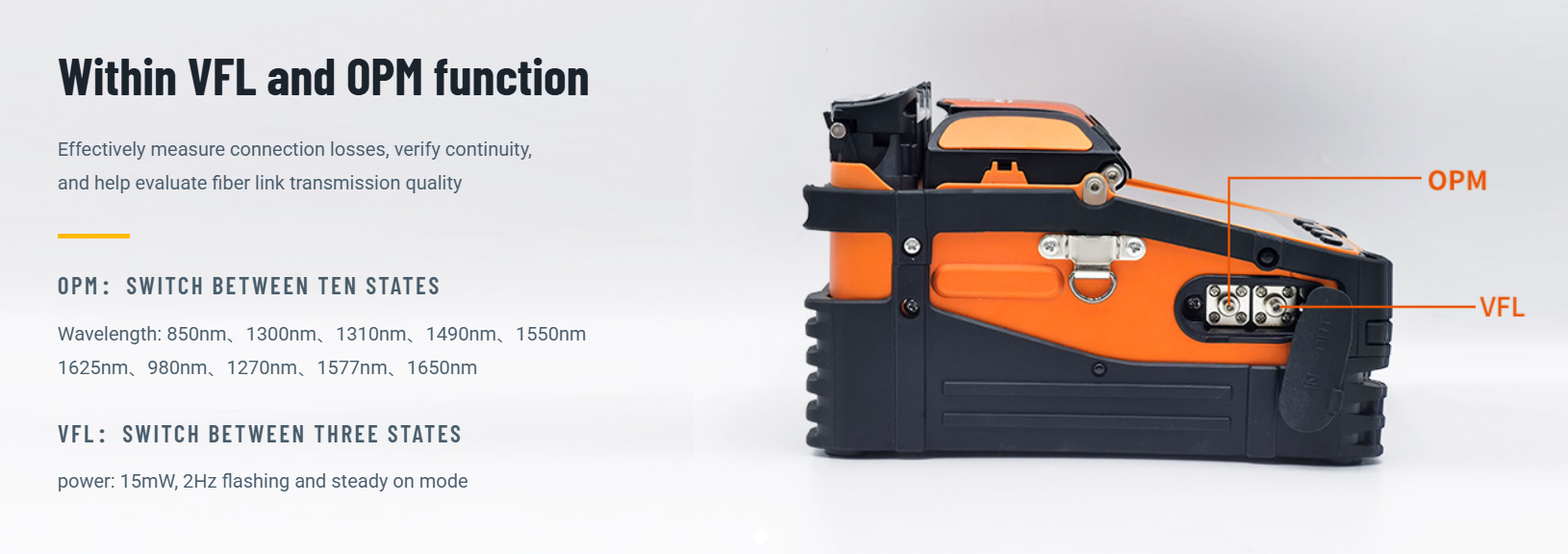

VFL	The machine comes with: power: 15mW, 2Hz flashing and steady on mode
OPM	Wavelength: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm、980nm、1270nm、1577nm、1650nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)
Battery capacity	7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 260 cores
Magnification	320x (X or Y axis single display) 200x (x and Y axis dual display)
Fiber diameter	Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Cutting length	Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm
Heat shrink tube	60mm、50mm、40mm、25mm
Tensile testing	standard 2N
Display	5 inch TFT color display screen
Boot time	1s, boot can enter the working mode
Data is stored	Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.
Wireless communication	Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m
Software upgrade	Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software
Management function	The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc.
	through the mobile phone APP. The number of welding times or working time of the equipment can be set.
	The manager can effectively manage a single or multiple equipment.
Return loss	Better than 60 db
Product protection	Waterproof, dustproof and fall proof
Power supply	Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level
