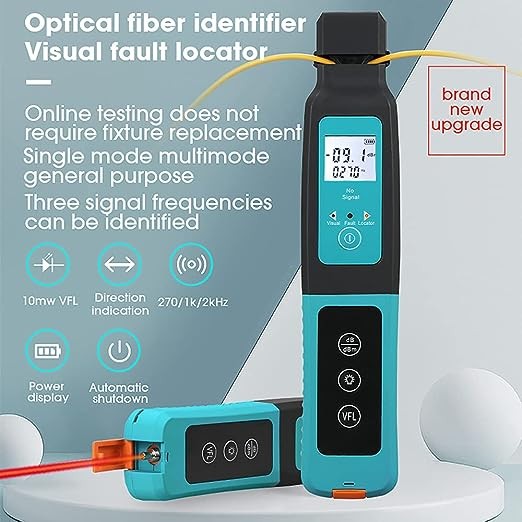

Fiber optic identifier with VFL Light source SM MM Detector

Item Type: Optical Fiber Identifier
Model: AUA-40
Material: ABS
Battery: 1.5V 2xAA Battery (Battery Not Included)
Purpose: It can be used for fiber identification.

Type Parameter
Wavelength Range 800-1700nm
Recognition Type CW, 270Hz±5%, 1kHz±5%, 2kHz±5%
Detector Type φ1mm InGaAs 2 pcs
Adapter Fiber Type Universal φ0.25 (bare fiber), φ0.9, φ2.0, φ3.0 fiber jumper
Direction Left and right direction indication by LED indicator
Optical Power Reading Range -40dBm - +10dBm
Frequency R

Optical Fiber Identifier AUA-40

Feature:

• Easy and convenient design, no need to change the fixture when testing on the cable, single-mode and multi-mode can be used universally.
• It can identify the frequency of 270Hz/1kHz/2kHz, and there will be a buzzer sound when identifying the frequency.
• Equipped with left and right direction lights to display the direction and can accurately identify the direction of the fiber. The left direction light is on to indicate that the light source is from right to left.
• Light-weight body, small size, proper button placement, you can easily pick up the test, easy to use and barrier-
• Automatically shut down after ten minutes of no , energy saving and power saving, prolonging the use time.

Specification

- Wavelength recognition range: 800 - 1700nm

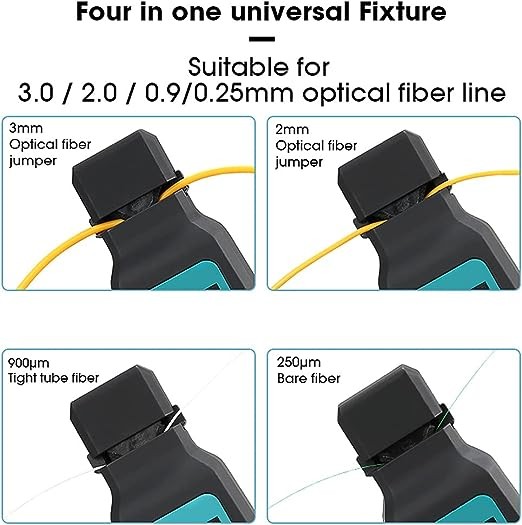

- Fiber line type: 3.0/2.0/0.9/0.25mm
- Signal direction: signal light display
- Identify signal frequency: 270Hz/1kHz/1kHz
- Accuracy: +10dB ~ -30dBm (continuous wave); +10dB ~ -25dBm (modulated signal)
- Sensitivity range: +10 ~ -50dBm
- Voice prompt: yes
- Automatic shutdown: yes

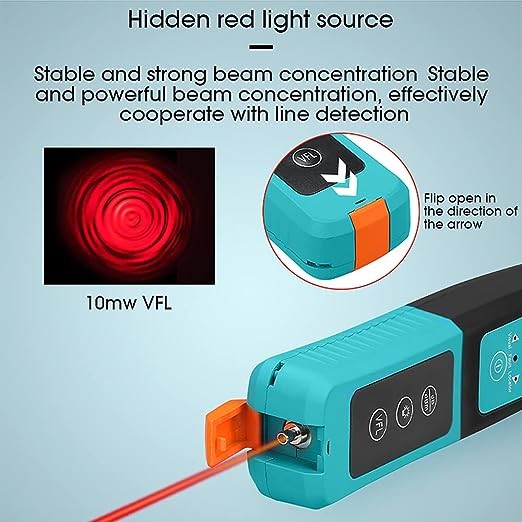

- Output wavelength: 650±10nm
- Output power: > 10mW
- Size: 240 x 47 x 29mm
- Weight: 180g

Package Included:
1 x Optical Fiber Identifier (Battery Not Included)
1 x Manual
1 x Carrying Case
