Fiber optic fast connector SC UPC APC

Fiber optic fast connector SC UPC
SC APC
Singlemode
Simplex

Product Description:

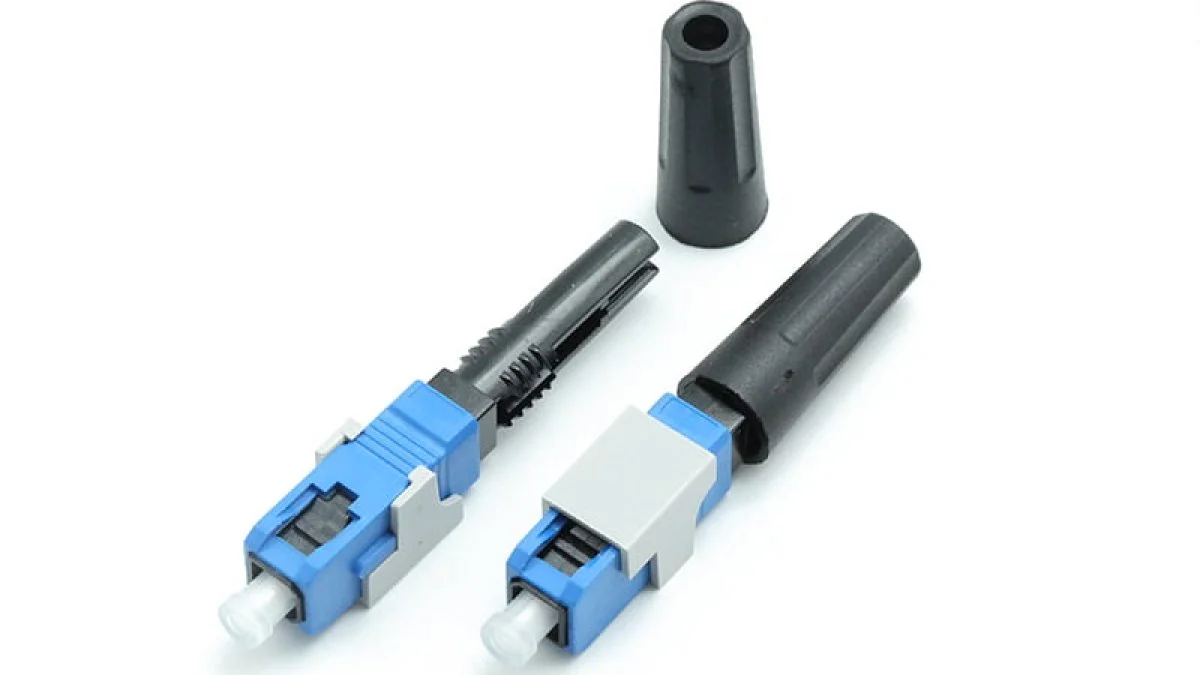

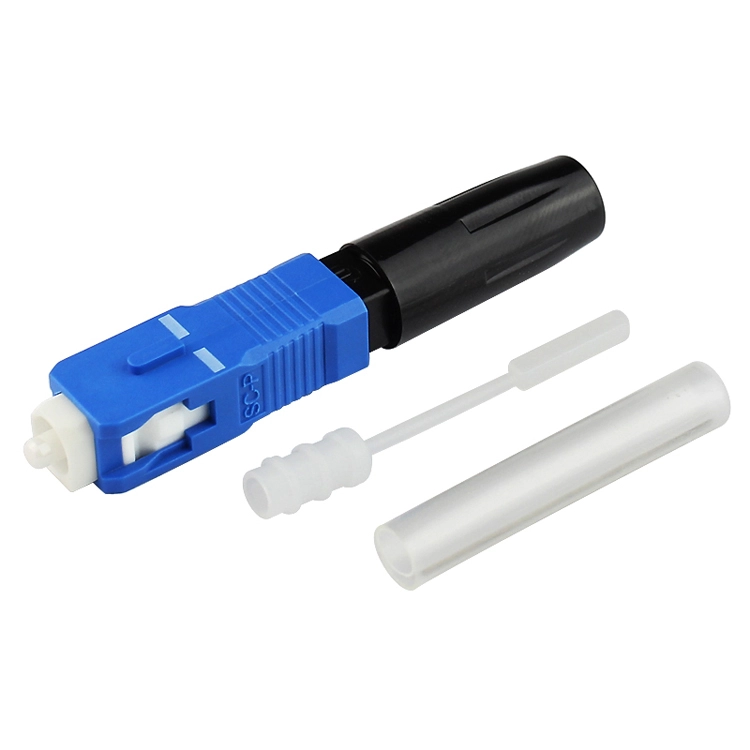

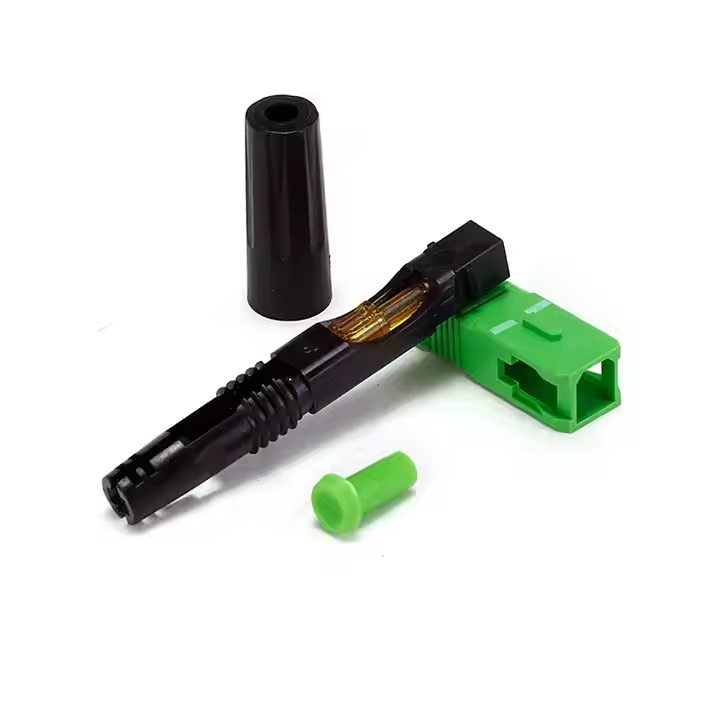

 Fiber Optic Fast connector

Descriptions

SC Fast Connector is a new kind of optical fiber connector that could be used for FTTH projects. No need to polish, no epoxy. It could be installed in the fields and make connection less than 2 minutes. Of course, they don’t need fusing the fiber. Just some small tools enough, so it can save time and money.


Specifications


  Category Specification Remarks
Aoolicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤0.5
Insertion Loss Typical value dB 0.3
Return Loss   dB ≥50
Fastening strength of naked fiber N ≥5
Tensile strength N ≥50
Reusable Time ≥10 times
Operating Temperature ºC -40~+85
On-line tensile strength(20N) dB ΔIL≤0.3
Mechanical durability(500 times) dB ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times) dB ΔIL≤0.3


Application:

CATV System

Telecommunications

Optical Networks

Testing / Measurement Instruments

Fiber to the Home
