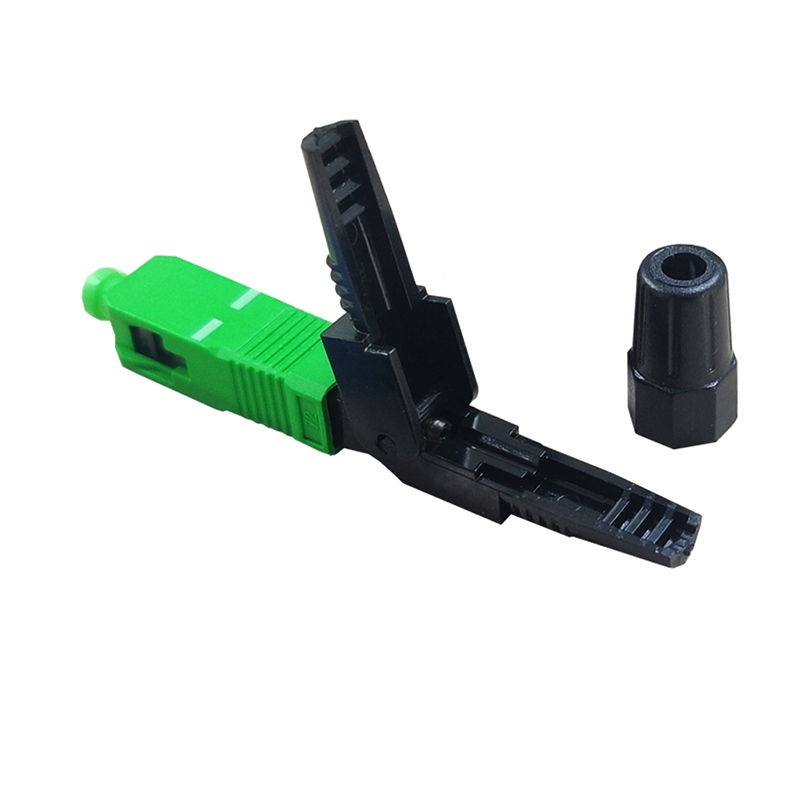

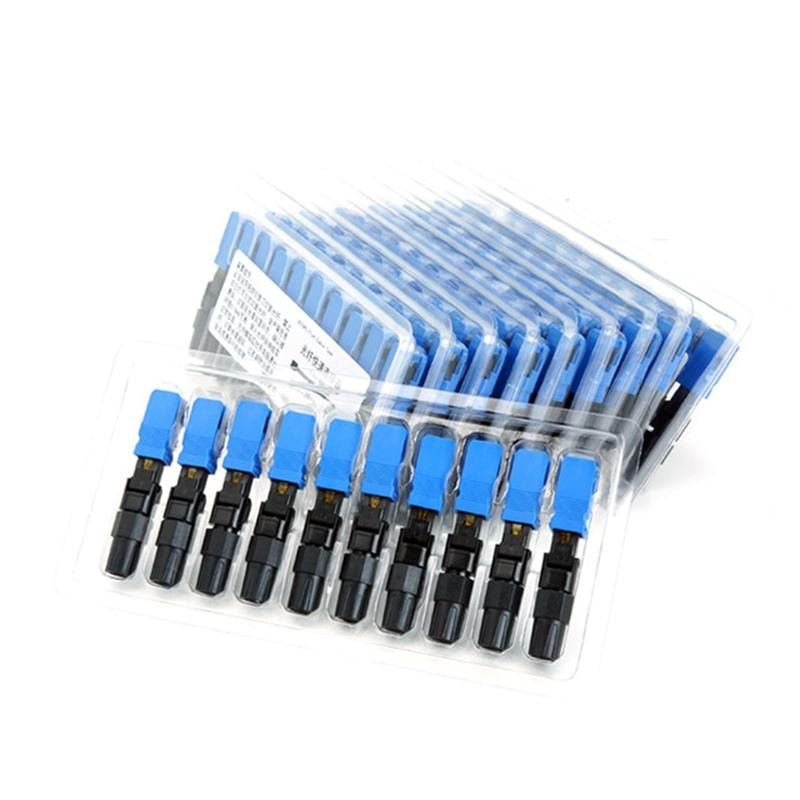

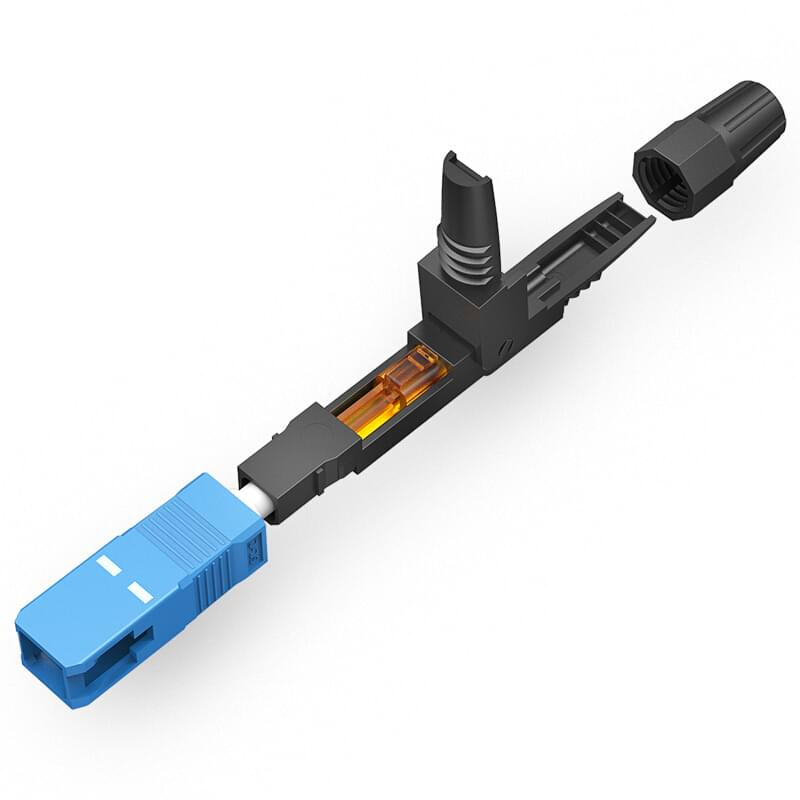

Fiber optic fast connector SC UPC APC 60mm

Fiber optic fast connector SC UPC 60mm quick assembly
SC APC
Singlemode
Simplex

Fiber Optic Fast connector singlemode multimode 60mm

Descriptions

SC Fast Connector is a new kind of optical fiber connector that could be used for FTTH projects. No need to polish, no epoxy. It could be installed in the fields and make connection less than 2 minutes. Of course, they don’t need fusing the fiber. Just some small tools enough, so it can save time and money.

Specifications

Applicably	3.0/2.0/0.9mm cable
Optical fiber diameter	φ125um (657A&657B)
Tight buffer diameter	φ250um
Fiber mode	Single mode
Operation time	About 10s (exclude fiber cut)
Insert loss	≤0.3dB (1310nm & 1550nm)
Return loss	≥45dB
Fastening strength of naked fiber	≥ 5N
Tight clamping force cladding	≥ 8N
Tensile strength	≥ 50N
Using temperature	-45°C~+80°C

Application:

CATV System

Telecommunications

Optical Networks

Testing / Measurement Instruments

Fiber to the Home
