Pigtail LC UPC G652D LSZH 0.9mm

Pigtail LC/APC
0.9MM
G652D
LSZH Jacket
1m

Product Description:

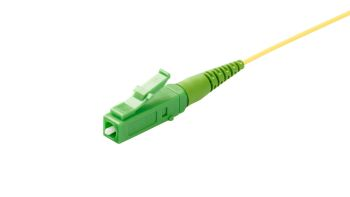

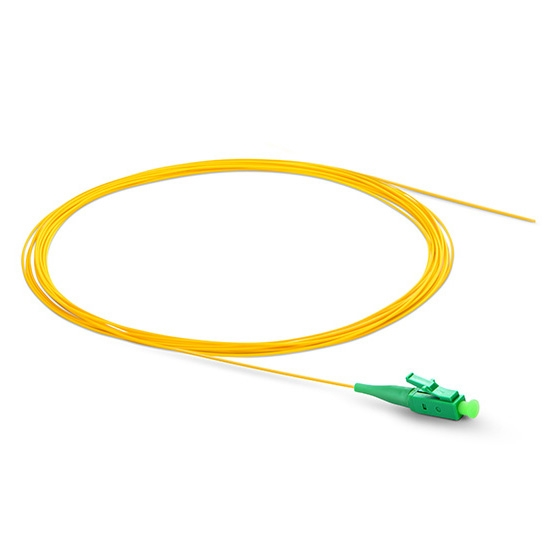

Fiber optic Pigtail LC APC G652D LSZH 0.9mm yellow color 1m

Description

Fiber optic pigtail is a type of cable that made of 12pcs LC fiber connectors at one end, and loose wires on the other. The pigtail connector side is used to link the equipment, while the pigtail side made of loose wires that are melted in order to be connected to the fiber cable. Pigtails can be single-mode or multi-mode, which can be accompanied by terminations like SC, FC, ST, LC, MU, MT-RJ, and others. It is normally used within the wall or rack mounted patch panel.

Specification

Item	LC/APC Fiber Optic Pigtail Simplex
Connector	LC/APC
Fiber type	G652D/G657A1/G657A2 for option
Insertion Loss	≤0.2dB
Minimum Bend Radius	30 mm
Polish Type	0.9/2.0/3.0 mm
Cable Jacket	PVC/LSZH
