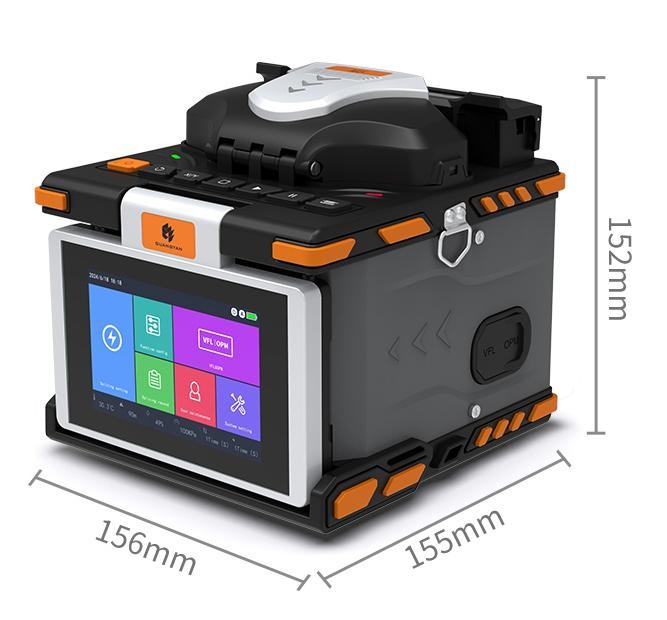

Fiber fusion machine M5

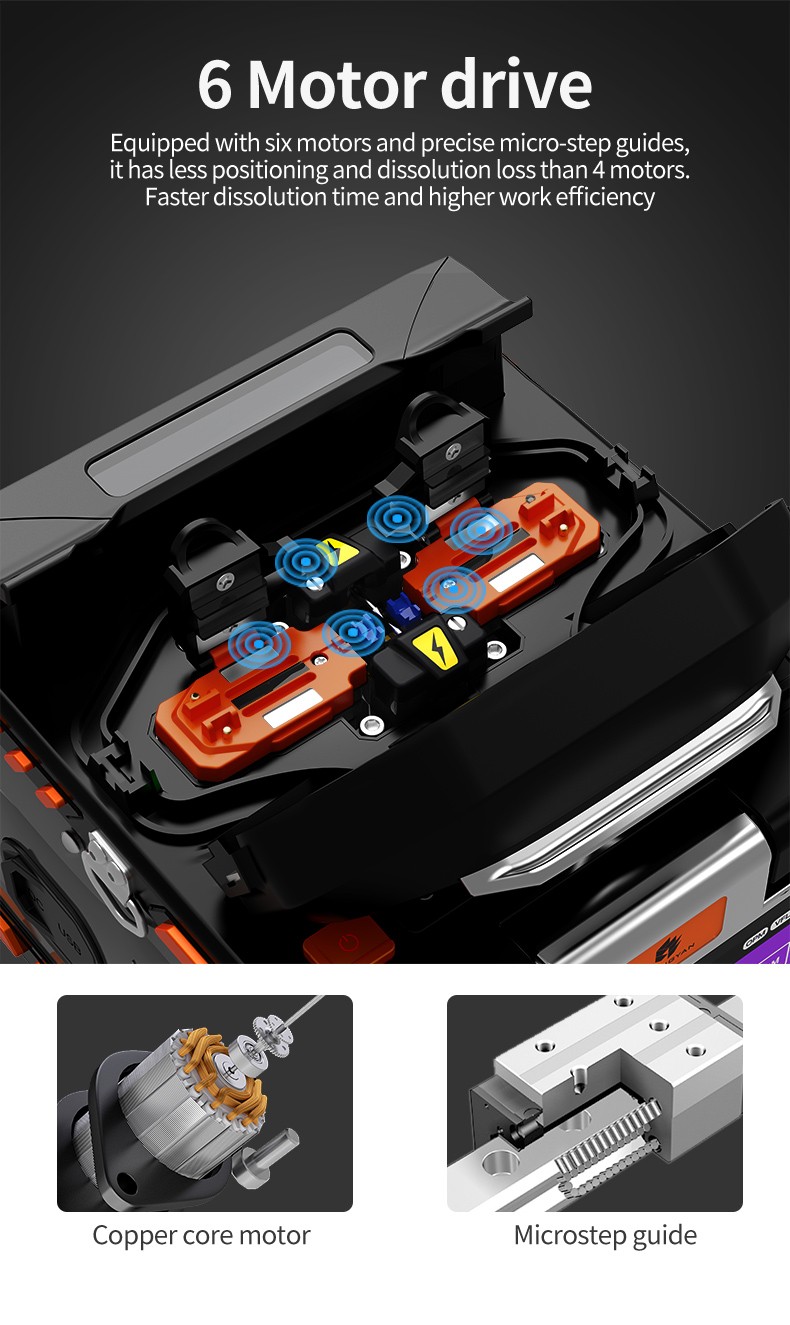

6 motors
core to core and clad to clad alignment
FTTx
FTTH

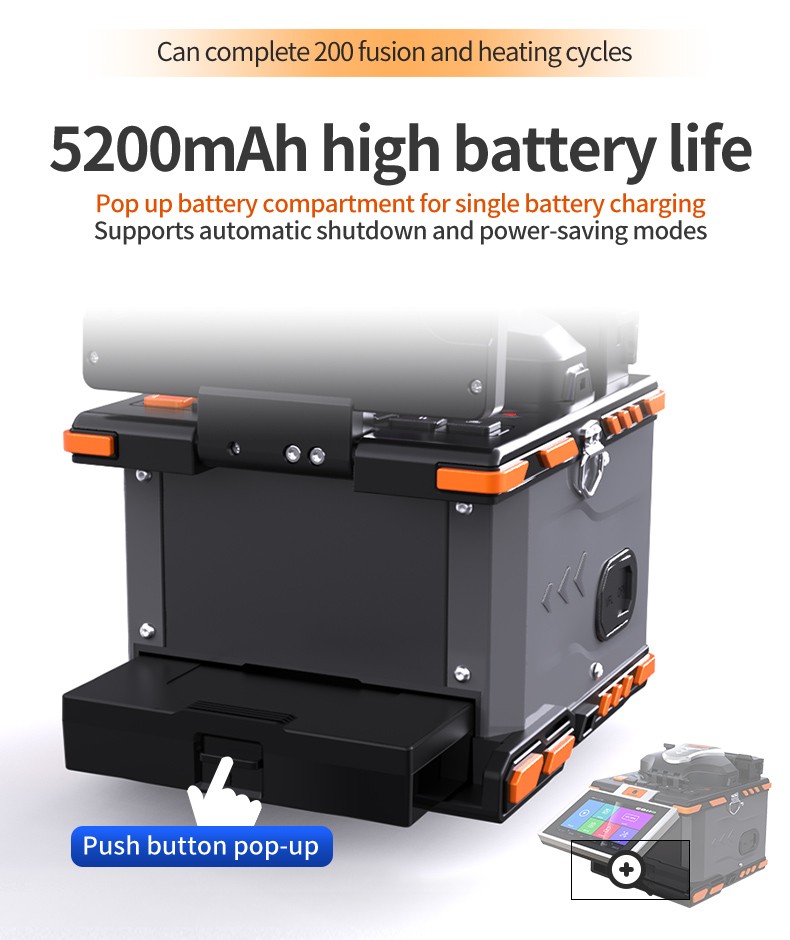

5200mAh battery

Product Description:

Fiber fusion machine M5

Descriptions

This fiber optic fusion splicer is a precision device used to join two optical fibers together. It works by aligning the fiber ends and then using an electric arc to melt and fuse them, ensuring minimal signal loss and high transmission efficiency.

This tool is essential in telecommunications, data centers, and cable TV networks for creating reliable, low-loss connections in fiber optic cables. Its compact design and automated features make it user-friendly, enabling technicians to perform quick and accurate splices in the field.

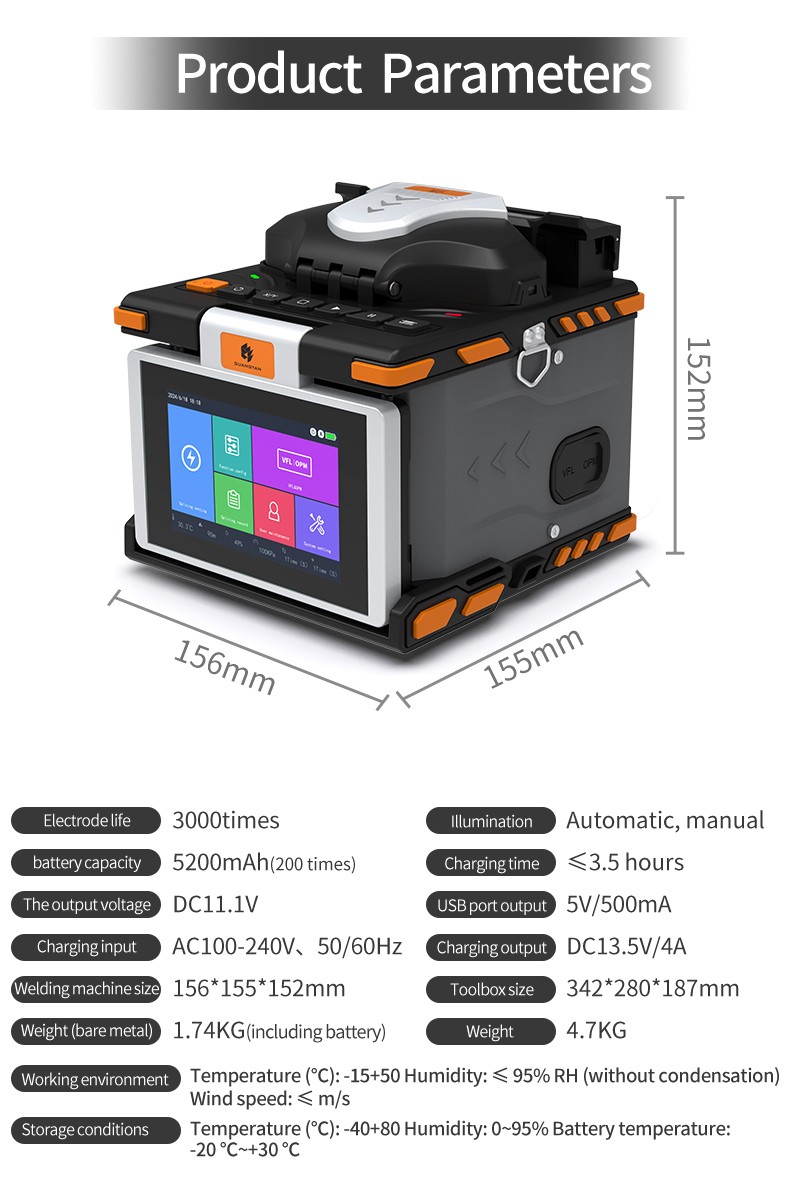

Technical Parameters
Applicable fiber optic	SMF(G.652)/MMF(G.651)/DSF(G.653)/NZDSF(G.655)
Fiber Diameter	Cladding:80-150 μM; Soil cover layer; 0.1-3mm
Splice loss	0.02dB(SMF)/0.01dB(MMF)/0.04dB(DSF/NZDSF)
Alignment method	Fiber core, claddingSix motor automatic focusing
Focusing method	Six motor automatic focusing
Sealing	Auto/Manual
Weld time	8 seconds (typical SMF value)
Relay testing	1.96-2.25N

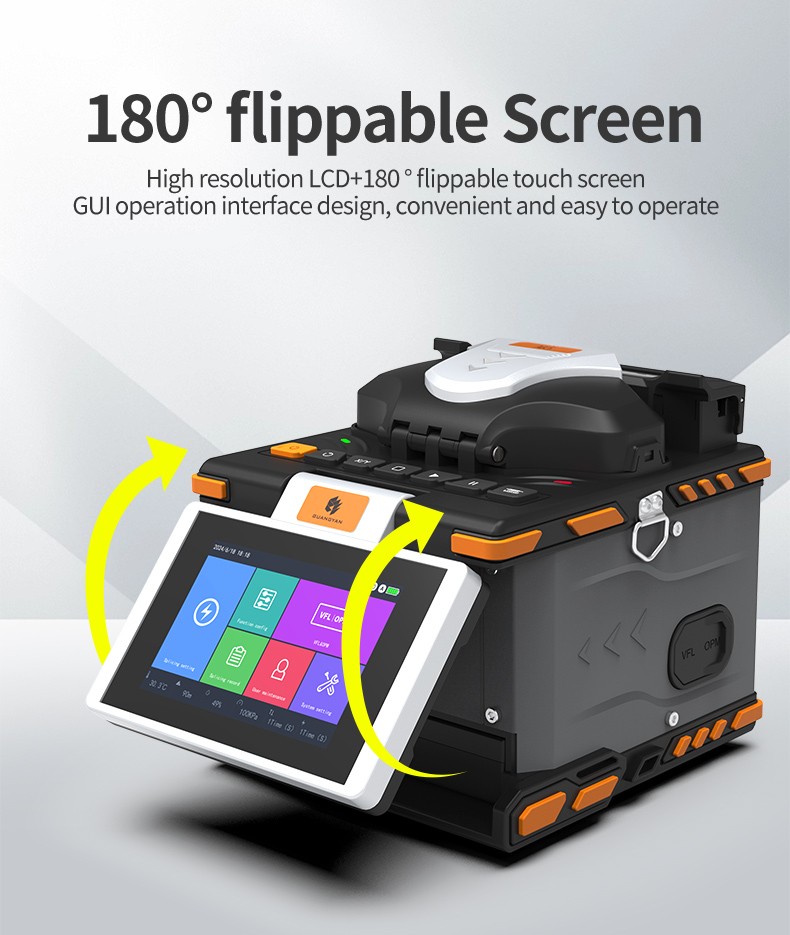

lmage display	Capacitive 5.5-inch touch LCD screen
Magnification	300(X/)/150 (X/ synchronization)
Welding record	10000 welding data and 1000 images
Typical heating time	18S
Heating time	0-60S
Heat shrinktubing sleeve	20mm/30mm/40mm/50mm/60mm
Local OPM	Range (dBm):-70~+3 Wavelength (nm):850-1625nm/Uncertainty:+0.5%
Red light (VFL)	≥10MW
Operation interface	GUl graphical user interface
