Fiber cleaver high precision FC-30

Blade life up to 48,000 times
Typical cutting angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Traditional bench top design, simple andeasy to use
Double fixture design, suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Product Description:

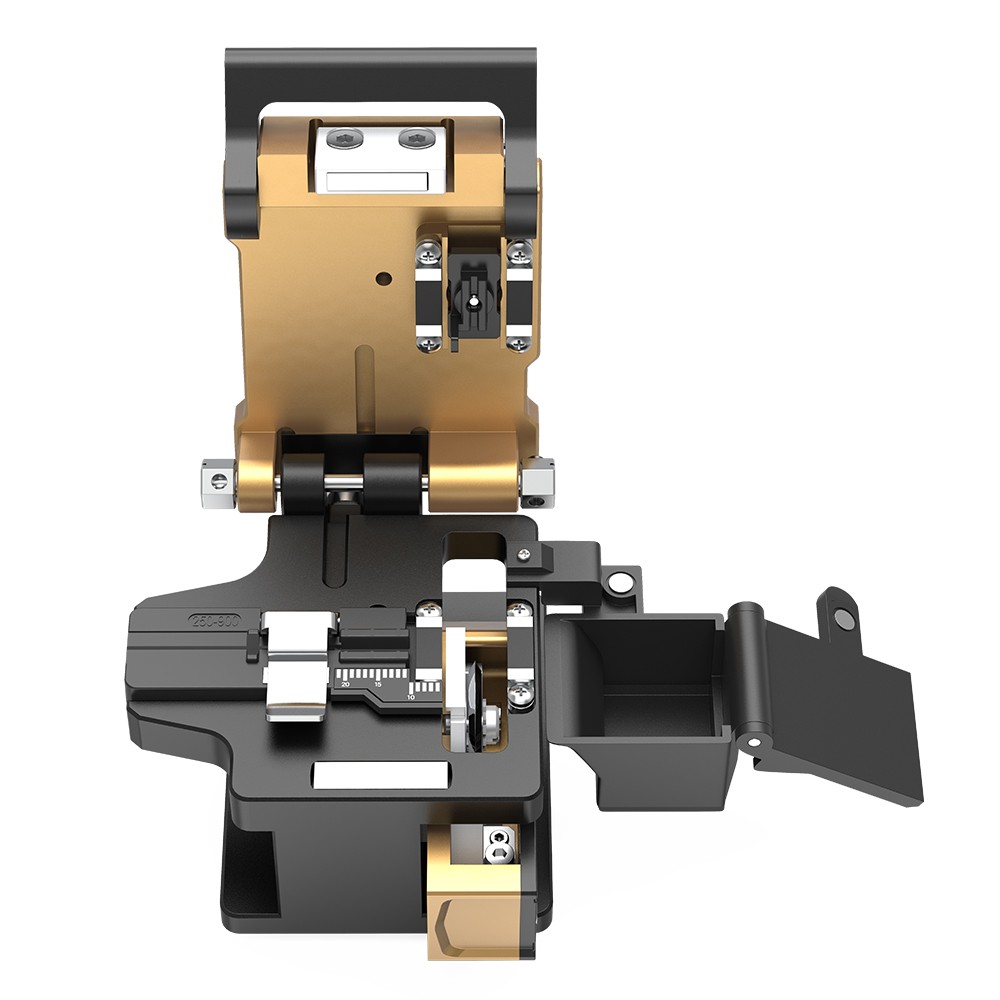

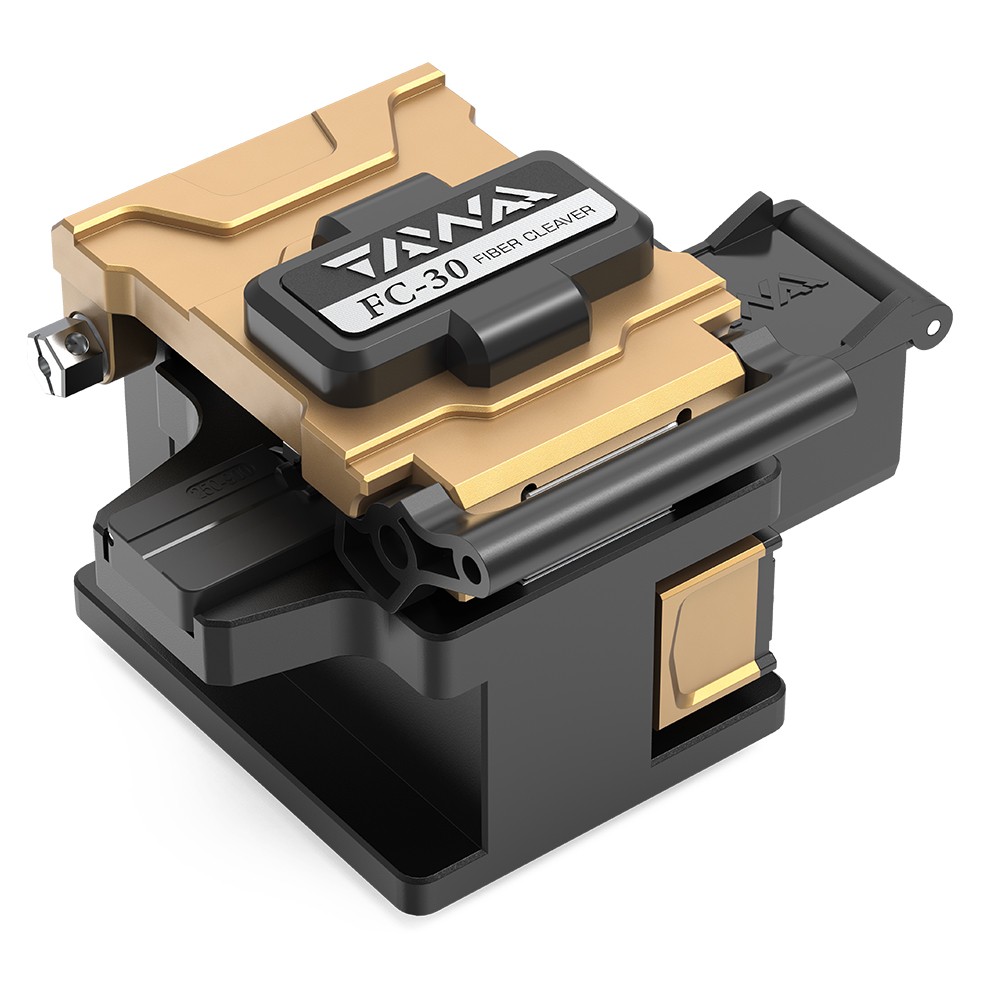

Optical Fiber Cleaver FC-30

Feature:

Blade life up to 48,000 times
Typical cutting angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Traditional bench top design, simple andeasy to use
Double fixture design, suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture

Specification

Fiber Meterial	Single fiber
Cladding Diameter	125μm
Cleaved Length	Single fiber: 8~20mm
Applicable Fiber Cable	Single fiber: 0.25 ~ 3.0mm
Typical Cleaved Angle	Less than 0.5 Degrees ★①
Typical Blade Life	Total 48,000 fiber cleaves （replaceable） ★②
Off-cut Collector	Pre-fitted
Type of Offcut Bin	Manual
Auto Return	Pre-fitted
Dimension / Weight	77W 97D63H(mm) / 360g
★① The fiber cleave angle changes by operating environment
★② Blade life changes by operating environment
