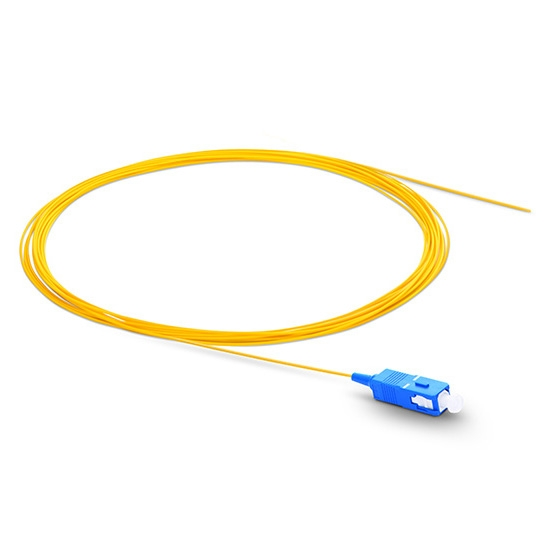

Pigtail SC UPC LSZH SM SX 0.9MM 1M

Pigtail SC UPC
Jacket LSZH
Connector SC UPC
Length 1m
Diameter 0.9mm

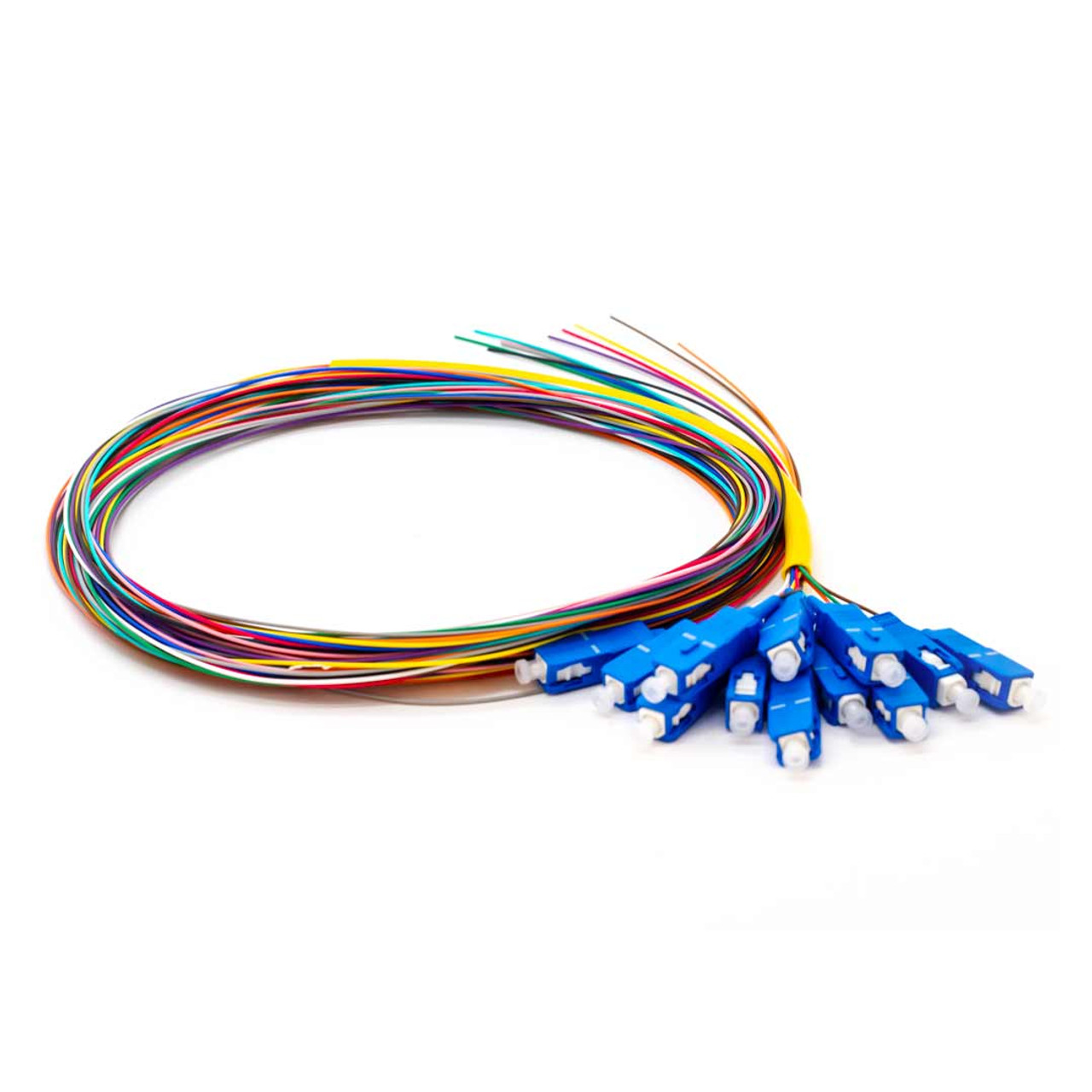

Pigtail SC UPC G652D LSZH 0.9MM COLOR TUBE

Description

Pigtails is optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber atthe other end
basically used to splice with the fiber so that they can be connected to the patch panel orequipment.
They also present a feasible and reliable solution for easier fiber termination, effectively saving operating time and labor cost

Specification

Connector	SC,LC,FC,ST
	UPC(SM)	APC(SM)	UPC(MM)
Insertion Loss(dB)	≤0.2
Return Loss (dB)	≥50	≥60	≥35
Cable Diameter (mm)	0.9mm, 2.0mm, 3.0mm
Durability(dB)	1000matings, <0.3
Interchangeability (dB)	<0.2
Operating temperature (℃)	-40~+85

Feature

Low insertion loss, high return loss,

Good Repeatability

interchange ability
