Optical power meter NK200

Wave range 800nm~1700nm
Connector Universal FC/SC/ST
Power Range -70dBm~+6dBm /-50dBm~+26dBm

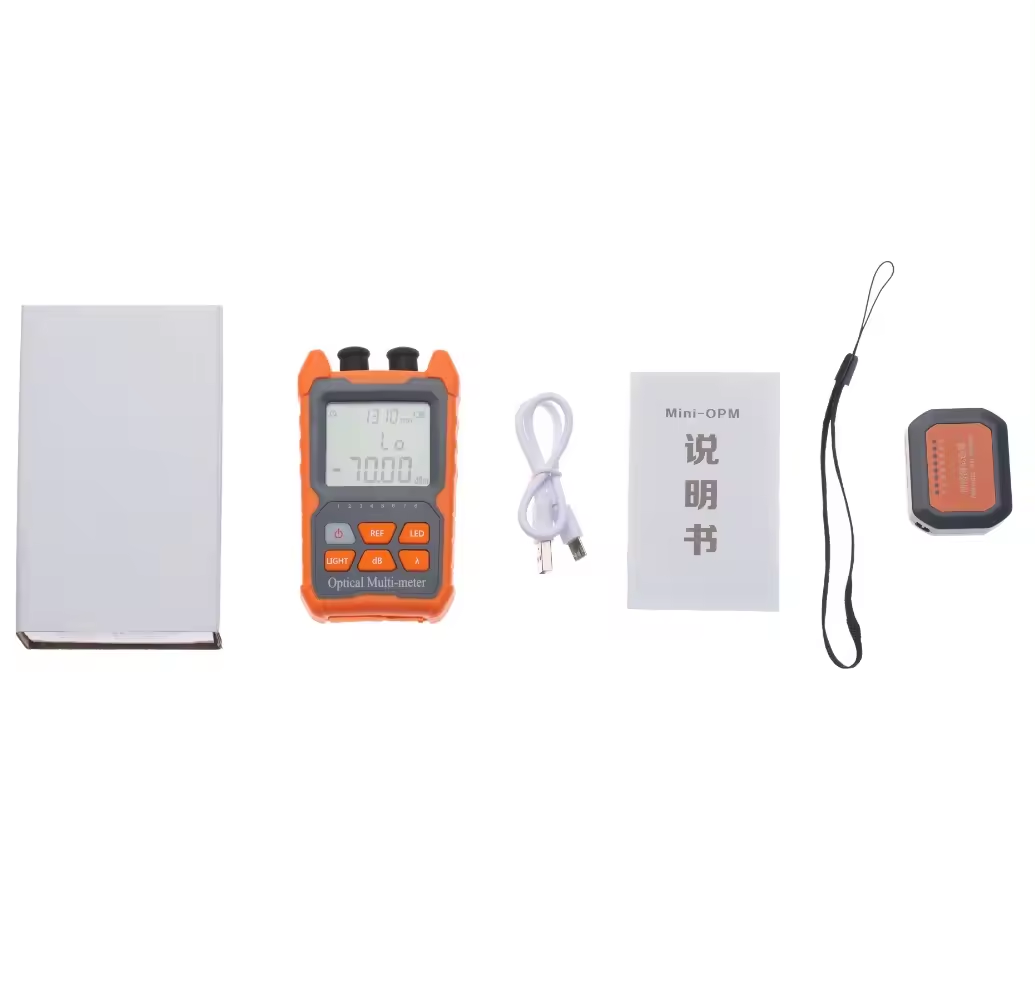

Mini Optical Power Meter NK200

NK200 series mini Optical Power Meter and red light all-in-one machine series are controlled by single-chip microprocessor but multifunction.It can be well protected by using embedded detector and laser.The whole machine has automatic shutdown function,three red light modes,backlight display,wavelength memory function,user calibration,wide test range,lighting,RJ45 cable sequence and cabel tracker test functions.

It is mainly used for continuous optical signal power measurement,optical fiber link loss test and optical fiber line on-off test.It is widely used in optical cable construction and maintenance,optical fiber communication,optical fiber sensing,optical CATV and other fields.

Feature:

*Supporting lighting

*Support backlight switch/automatic shutdown

*Support working frequency identification (optional)

*Support simultaneous display of nw/dBm

*Support wave memory when shutdown

*Support user calibration

*Always on and flashing red light

*Support SC/FC/ST interface

*Supporting portable battery charging

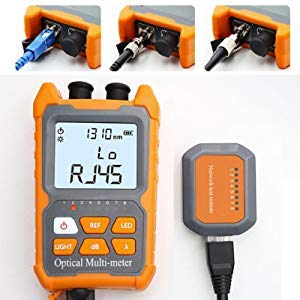

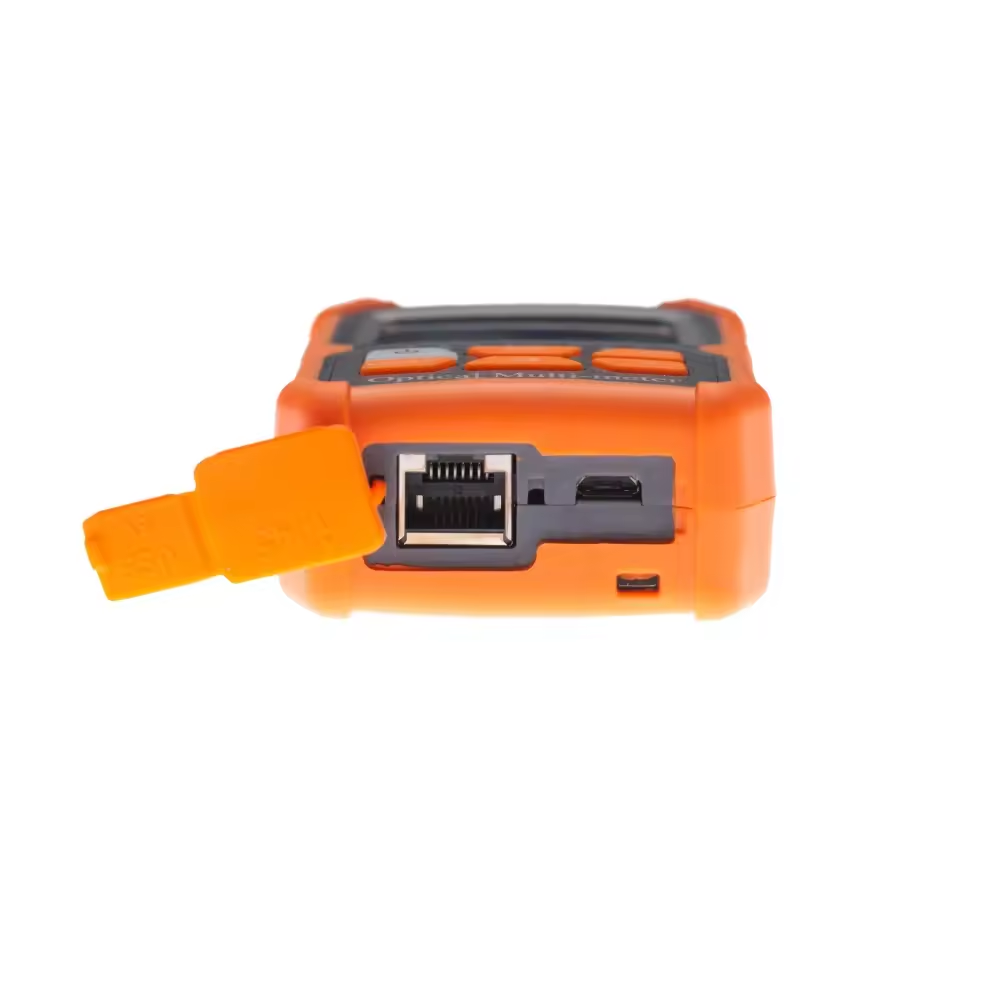

*Support RJ45 test (optional)

Specification

OPM
Wave Range	800nm~1700nm	800nm~1700nm
Connector	Universal FC/SC/ST	Universal FC/SC/ST
Detector Type	InGaAs	InGaAs
Power Range	-70dBm~+6dBm	-50dBm~+26dBm
Uncertainty	±5%
Calibration Wave	850/980/1300/1310/1490/1550/1625/1650nm
Display Resolution	Linear display:0.1% Logarithmic display:0.01dBm

VFL(Options)
Wave	650nm±30nm
Output Power	2mW/10mW/30mW/50mW
Mode	CW/1Hz/2Hz
Connector	Universal FC/SC/ST
Others
Power Supply	Two AAA Batteries 700mAh Rechargeable Lithium Battery (Options)
Automatic Shutdown Time	10min
Continuous Working Time	≥120h(OPM Function)
