Fiber optic adapter LC UPC LC/APC Singlemode Multimode Simplex Duplex

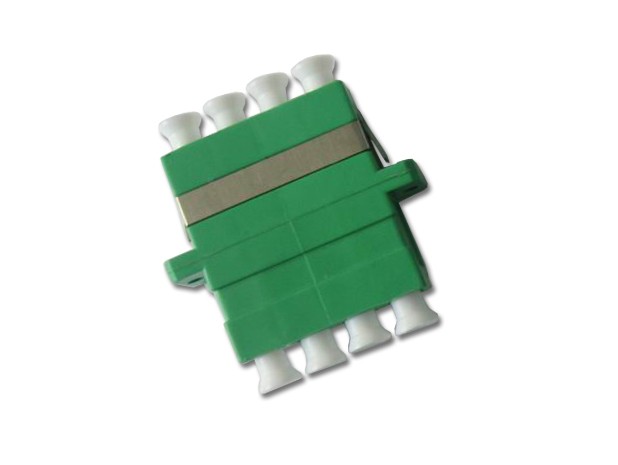

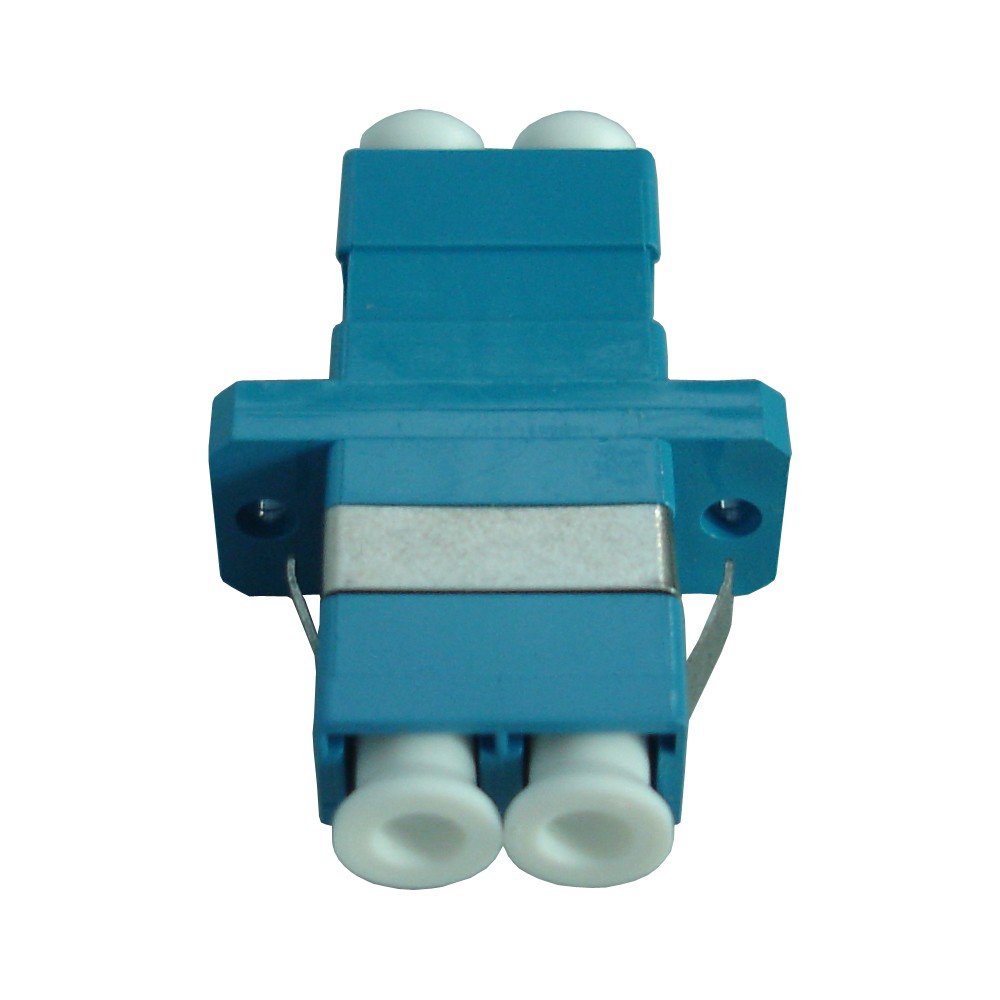

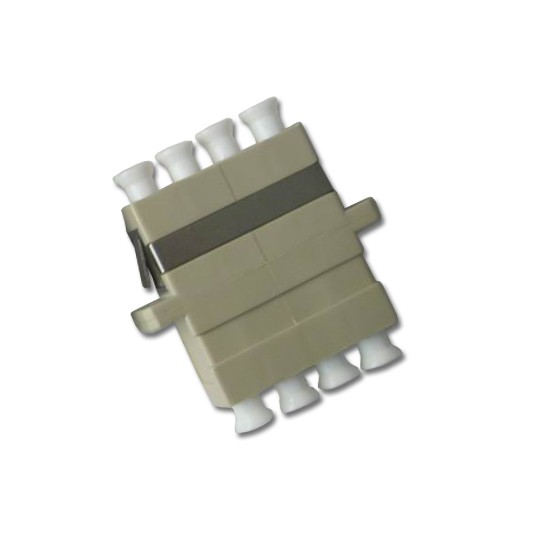

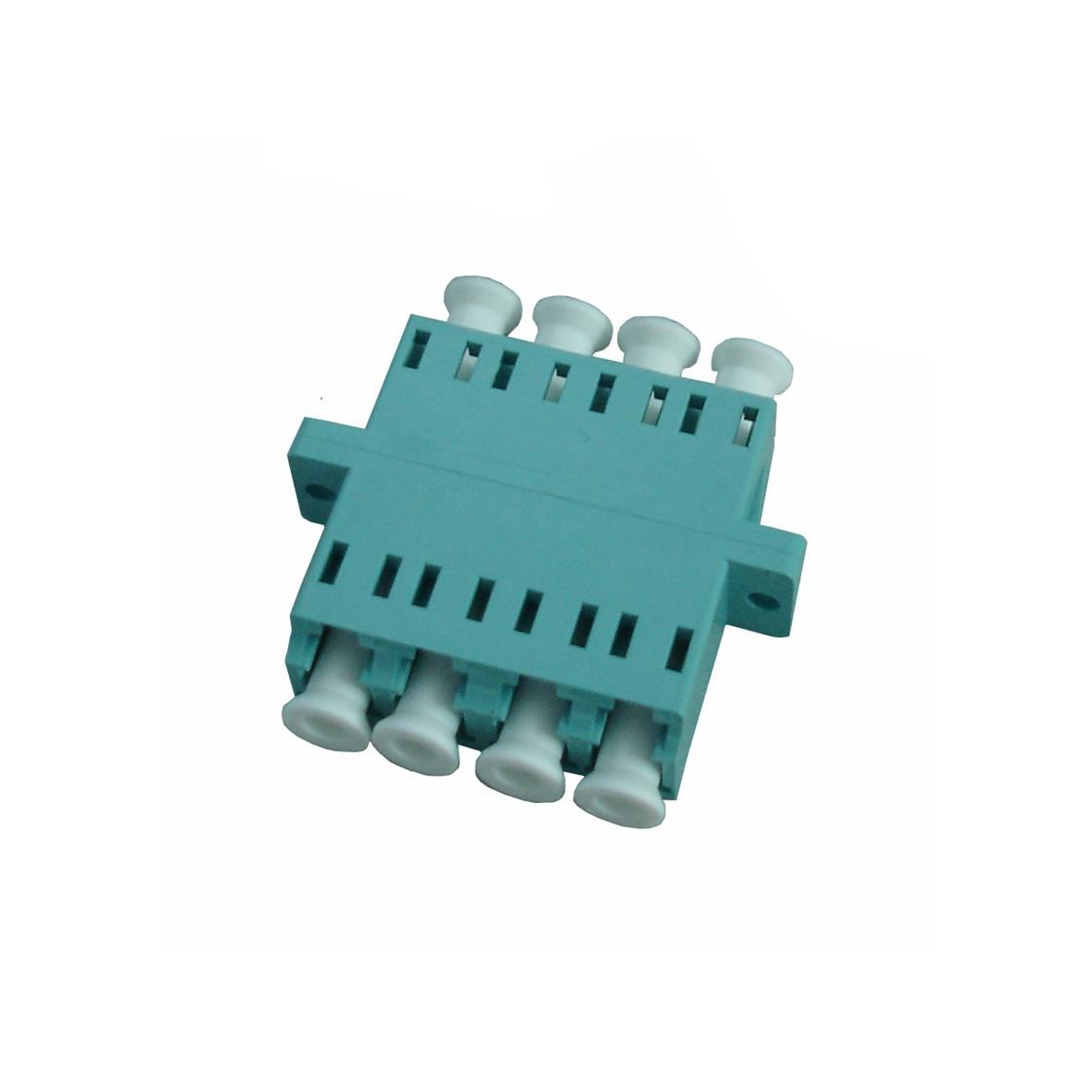

LC Fiber Optic Adapter
Descriptions
Fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection
Specifications
|
Description |
LC Fiber Optic Adapter |
|||||
|
Item NO. |
Test Item |
Unit |
Standard & Requirement |
|||
|
|
|
|
SM |
MM |
||
|
|
|
|
PC |
UPC |
APC |
PC |
|
1 |
Insertion Loss(Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
|
2 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
|
3 |
Exchangeability |
dB |
≤0.2 |
|||
|
4 |
Repeatability |
dB |
≤0.2 |
|||
|
5 |
Durability |
Time |
＞1000 |
|||
|
6 |
Operating Temperature |
℃ |
﹣40～﹢75 |
|||
|
7 |
Storage Temperature |
℃ |
﹣45～﹢85 |
|||
|
Description |
LC Fiber Optic Adapter |
|||||
|
Item NO. |
Test Item |
Unit |
Standard & Requirement |
|||
|
|
|
|
SM |
MM |
||
|
|
|
|
PC |
UPC |
APC |
PC |
|
1 |
Insertion Loss(Typical) |
dB |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
|
2 |
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
|
3 |
Exchangeability |
dB |
≤0.2 |
|||
|
4 |
Repeatability |
dB |
≤0.2 |
|||
|
5 |
Durability |
Time |
＞1000 |
|||
|
6 |
Operating Temperature |
℃ |
﹣40～﹢75 |
|||
|
7 |
Storage Temperature |
℃ |
﹣45～﹢85 |
|||
Material:
Sleeve material: Zirconia
Housing Material: High Quality Plastic
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home
