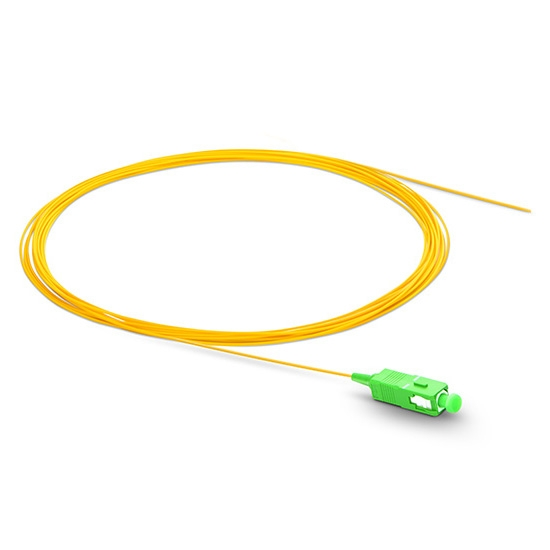

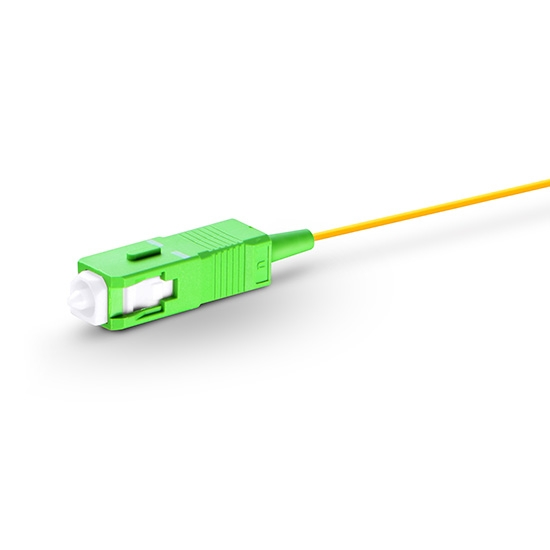

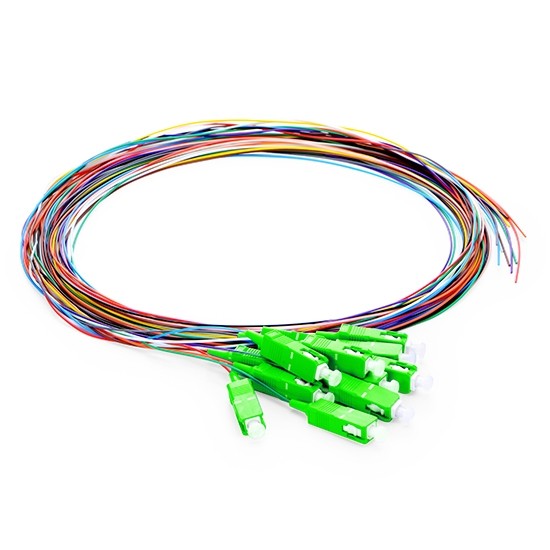

SC APC Pigtails SM LSZH 0.9mm

Product Description:

Descriptions

Pigtails is optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end .basically used to splice with the fiber so that they can be connected to the patch panel or equipment. They also present a feasible and reliable solution for easier fiber termination, effectively saving operating time and labor cost

Specification

Connector	SC,LC,FC,ST
	UPC(SM)	APC(SM)	UPC(MM)
Insertion Loss(dB)	≤0.2
Return Loss (dB)	≥50	≥60	≥35
Cable Diameter (mm)	2.0mm, 3.0mm
Durability(dB)	1000matings, <0.3
Interchangeability (dB)	<0.2
Operating temperature (℃)	-40~+85
