MPO to MPO patch cord 12FIBERS OM3 female to female type B LSZH 1M

MPO-MPO 12FIBERS OM3 Female to female LSZH type B 1M
LSZH OR PVC
Length
12F,24F,8F
Color
Can customized according to customer request

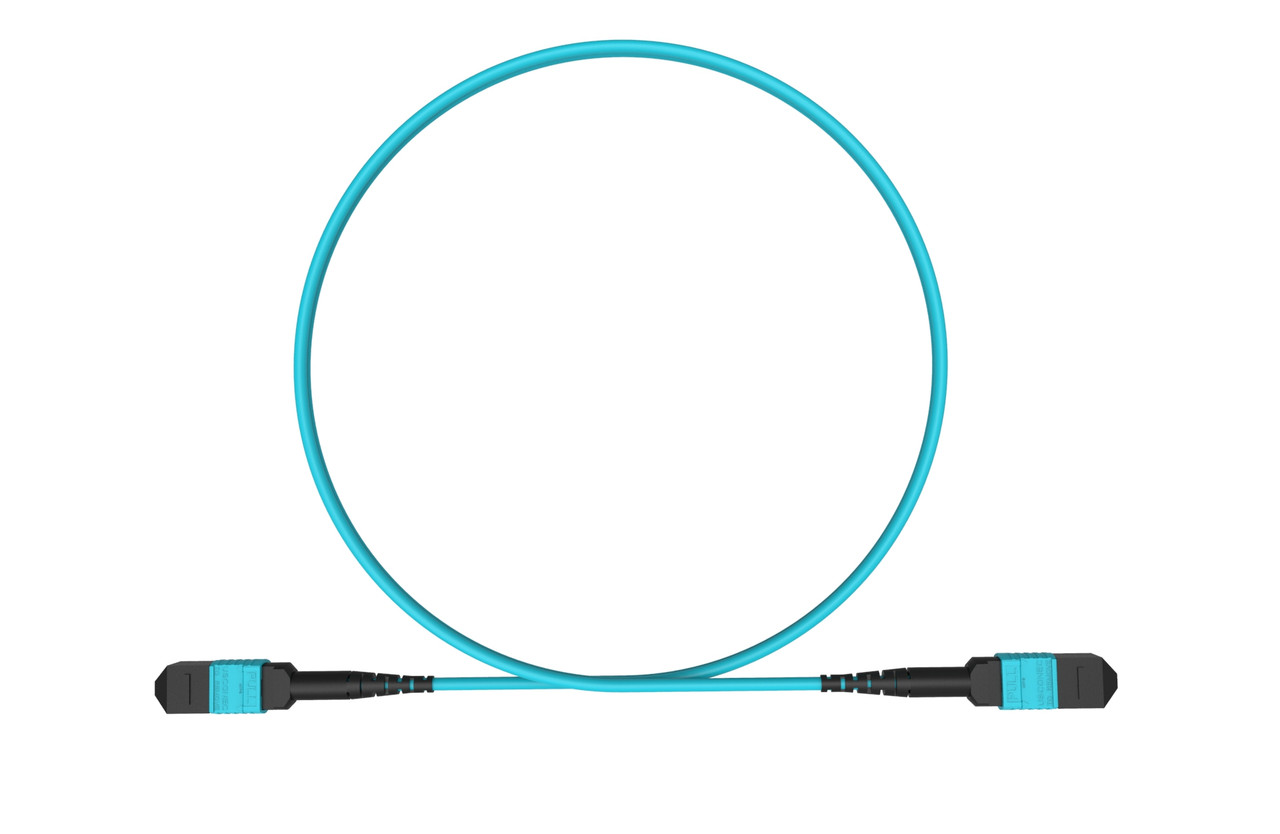

MPO Patch cord OM3 12F Female to Female type B LSZH Aqua 1m

Description

MPO to MPO Patch Cable(MPO FEMALE Connector without PIN) meet Low insertion loss and return loss(Insertion loss:<0.5dB,Return loss:≥25dB);and deliver the performance and reliability needed in todays,appliy for high-speed broadband and data networks.

Specifications

Item	MPO female to MPO female fiber optic patch cord cable, 12F, OM3, 10m length, B polarity
Ferrule end-face	MPO-MPO
Connector type	MPO
Cable type	LSZH
Mode	OM3 50/125um
Cable diameter	3.0mm
Insertion loss	0.35dB
Return loss2	25dB
Color	Aqua
Operating Temperature	-20 degree to 70 degree
Length	1m,2m,3m....customized
Package	customized
Lead time	1-2week

Features

excellent reliability

superior adaptability

improved security

Applications

Server rooms

Data center

LAN network

FTTH,GPON,Telecommunications
