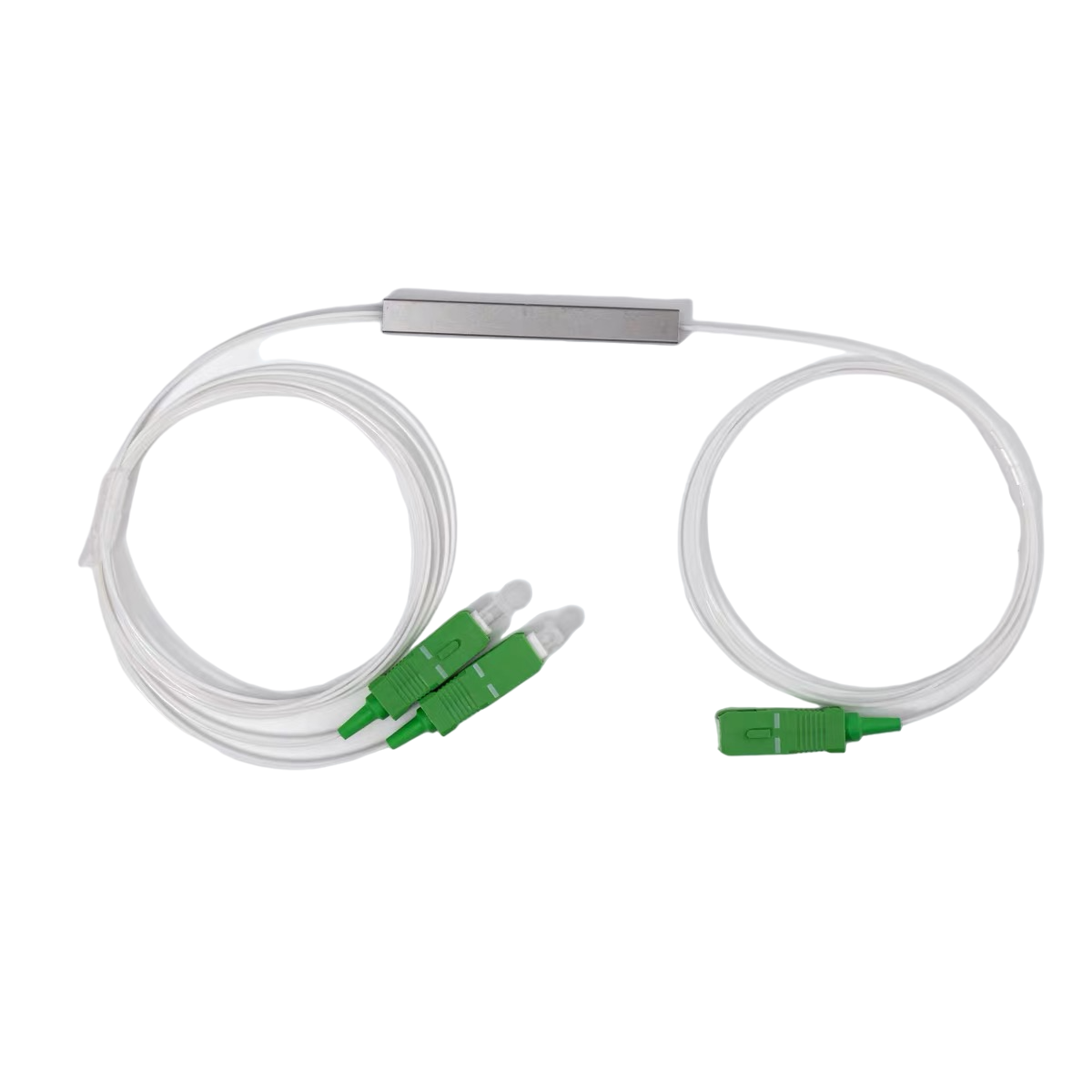

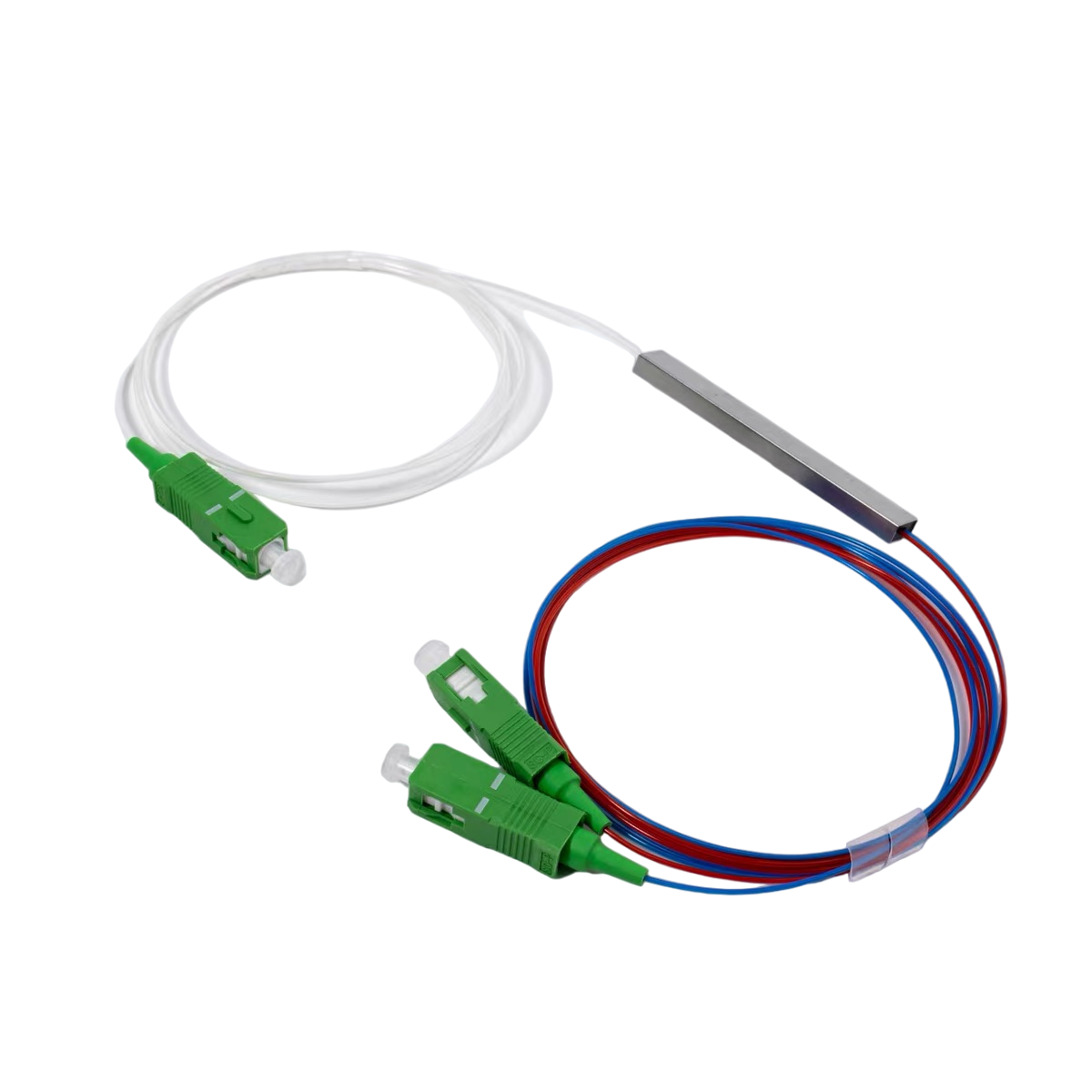

PLC splitters mini module type SC UPC 1X2 G657A2 Singlemode Color tube 1meter
PLC Optical Splitter
PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability.
The PLCs devices have 1x4, 1x8, 1x16 and 1x32 standard configurations, as well as customized structures of 2x4, 2x32, and 2x64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement.
Specification:
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
|
Operating wavelength (nm) |
1260～1650 |
||||||
|
Fiber type |
G657A or other request |
||||||
|
Insertion Loss (dB) (Max.) |
3.9 |
7.2 |
10.3 |
13.5 |
16.8 |
20.5 |
23.5 |
|
Uniformity(dB) (Max.) |
0.6 |
0.6 |
0.8 |
1.0 |
1.5 |
1.8 |
2.0 |
|
Return Loss(dB) (Min.) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
Temperature stability (-40～85 ℃)(dB) (Max.) |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
1.0 |
|
Polarization dependent loss (dB)(Max.) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
|
Wavelength Dependent Loss (dB)(Max.) |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
0.8 |
1.2 |
|
Directivity (dB)(Min.) |
55 |
||||||
|
Operating Temperature (℃) |
-40～85 |
||||||
|
Storage temperature(℃) |
-40～85 |
||||||
|
Device package size (mm) (L×W×H) 0.25mm fiber |
40×4×4 |
45×5×4 |
50×7×4 |
60×12×4 |
120x26x10 |
||
|
Micro Module Size (mm) (L×W×H) 0.9mm fiber |
55×7×4 |
60×12×4 |
80×20×6 |
100x40x6 |
120x50x12 |
||
|
Module Box Dimensions (mm) (L×W×H) 2.0mm fiber |
100×80×10 |
120×80×18 |
140×115×18 |
150x130x25 |
|||
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
2×128 |
|
|
Operating wavelength (nm) |
1260～1650 |
|||||||
|
Fiber type |
G657A or other request |
|||||||
|
Insertion Loss (dB) (Max.) |
4.2 |
7.5 |
10.6 |
13.9 |
17.2 |
20.8 |
23.8 |
|
|
Uniformity(dB) (Max.) |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
2.0 |
|
|
Return Loss(dB) (Min.) |
55 |
55 |
55 |
55 |
55 |
55 |
55 |
|
|
Temperature stability (-40～85 ℃)(dB) (Max.) |
0.6 |
0.6 |
0.6 |
0.8 |
1.0 |
1.0 |
1.0 |
|
|
Polarization dependent loss (dB)(Max.) |
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
|
|
Wavelength Dependent Loss (dB)(Max.) |
0.6 |
0.6 |
0.6 |
0.8 |
1.0 |
1.0 |
1.2 |
|
|
Directivity (dB)(Min.) |
55 |
|||||||
|
Operating Temperature (℃) |
-40～85 |
|||||||
|
Storage temperature(℃) |
-40～85 |
|||||||
|
Device package size (mm) (L×W×H) 0.25mm fiber |
50×4×4 |
50×7×4 |
60×12×4 |
120x26x10 |
||||
|
Micro Module Size (mm) (L×W×H) 0.9mm fiber |
55×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
100x40x6 |
120x50x12 |
||
|
Module Box Dimensions (mm) (L×W×H) 2.0mm fiber |
100×80×10 |
120×80×18 |
140×115×18 |
150x130x25 |
||||
