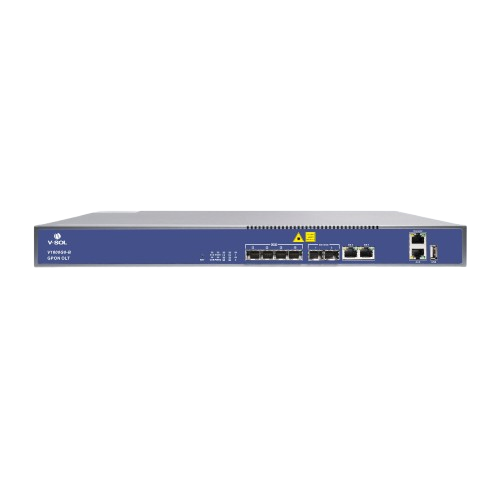

The V1600G0-B is a pizza-box GPON OLT with 4 PON ports that meets flexible and fast FTTx access, suiting the scenarios such as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM,etc.
Specification
Item
V1600G0-B
Chassis
Rack
1U 19Inch Standard Box
Uplink Port
QTY
4
RJ45(GE)
2
SFP(GE)/SFP+(10GE)
2
GPON Port
QTY
4
Physical Interface
SFP Slots
Max splitting ratio
0.130555556
Management Ports
1*10/100/1000BASE-T out-band port,1*CONSOLE port,1*USB2.0
Backplane Bandwidth (Gbps)
104
Port Forwarding Rate(Mpps)
47.616
PON Port Specification
Transmission Distance
20KM
GPON port speed
Upstream 1.244Gbps,Downstream 2.488Gbps
Wavelength
TX 1490nm,RX 1310nm
Connector
SC/UPC
Fiber Type
9/125nm SMF
Supported PON module level
Class B+,C,C+,C++,C+++
Power Supply
AC
Working Voltage Range:100~240V,Rated Voltage:110V/220V
DC
Working Voltage Range:-36~75V,Rated Voltage:-48V/-60V
Management Mode
EMS,WEB,SNMP,Telnet,CLI
