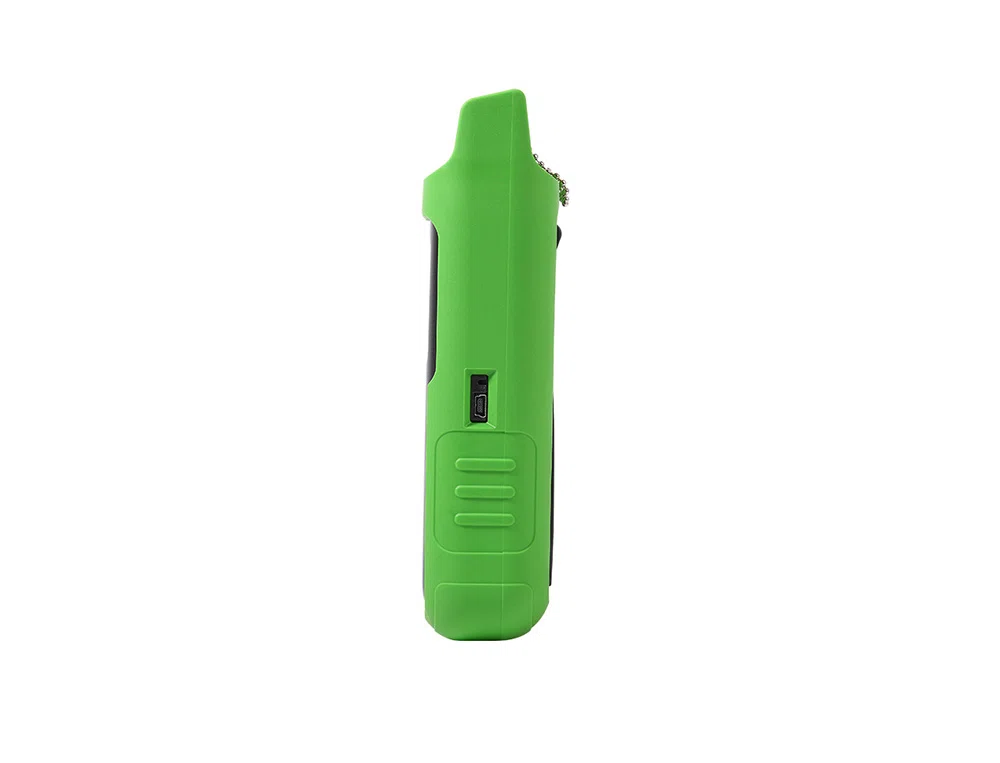

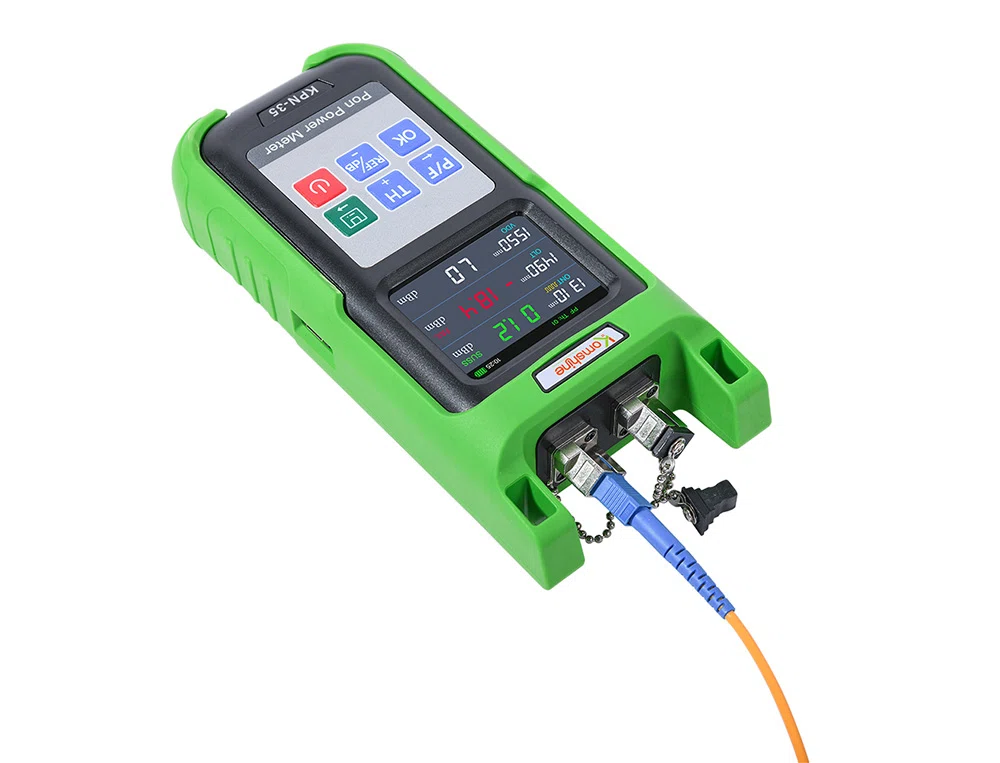

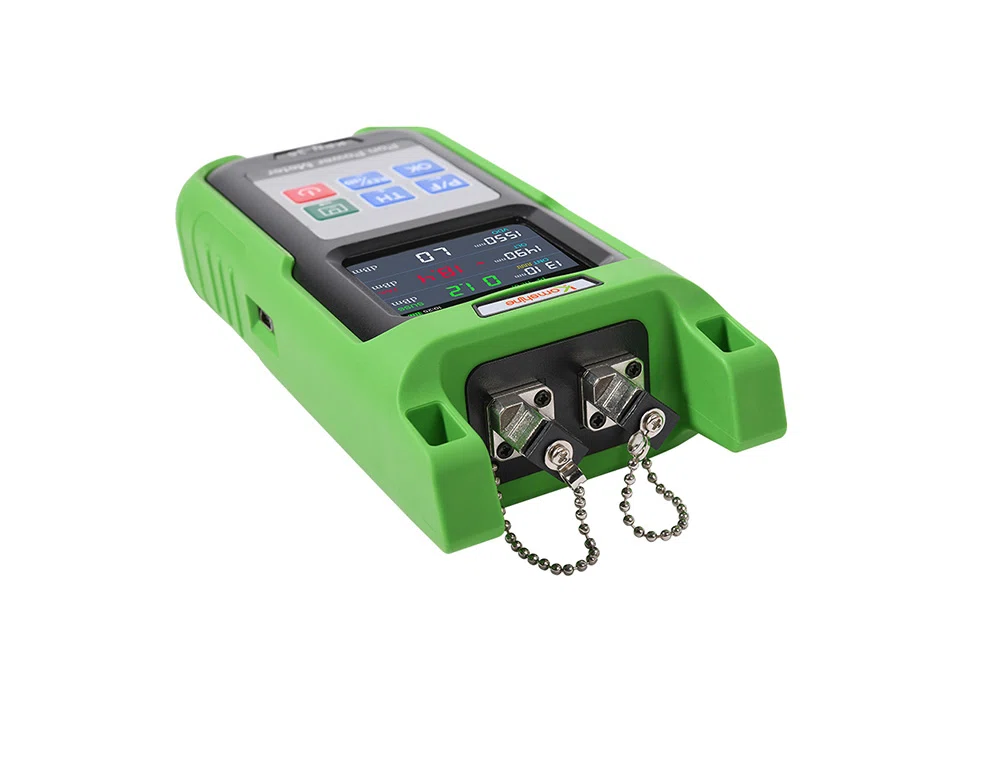

PON Optical power meter KPN-35

Wave range 800nm~1700nm
Connector Universal FC/SC/ST
Power Range -70dBm~+6dBm /-50dBm~+26dBm
RJ45 cable seeking distance 200m

PON Optical Power Meter KPN-35

Feature:

The meter test threshold can be set through the management software

Automatic shutdown(can be cancelled)

Users can test 1490 in the PON network at the same time nm,1550nm,1310nm three wavelengths

Simultaneously measure and display different PON architectures, data and video signals

The instrument provides five sets of thresholds to choose from, with pass, warning, and fail modes

Manual calibration

Specification

Model	PON KPN-35
Measuring wavelength	1310nm	1490nm	1550nm
Sensor Type	InGaAS
Linearity	±0.2dB@1550nm>-40dBm
Isolation	1490nm Wavelength >40dB	1310nm Wavelength >40dB	1310nm Wavelength >40dB
With fltering function	1550nm Wavelength >40dB	1550nm Wavelength >30dB	1490nm Wavelength >30dB
Testing range	>-30dBm，<10dBm
Insertion loss in penetration mode(dB)	<1.5dB
Measurable optical frequency broadband	1260~1360	1480~1500	1539~1565
Inherent uncertainty	0.5dB±1nW@1550nm
Display resolution	0.01dB
Threshold setting	5 groups are set by the host computer
Calibration wavelength	1310nm/1490nm/1550nm
Data storage	900 groups
Operating temperature	-10℃~+50℃
Relative humidity	0%~95%RH
Interface type	SC/UPC(Other types can be customized)
Power supply	3 AA batteries
Standard packaging	Description
KPN-35	KPN-35 main machine, USB line, warranty card, user guide, package
