OTDR NK4000D

OTDR NOVKER NK4000D
SM
1310
1550
100KM

Product Description:

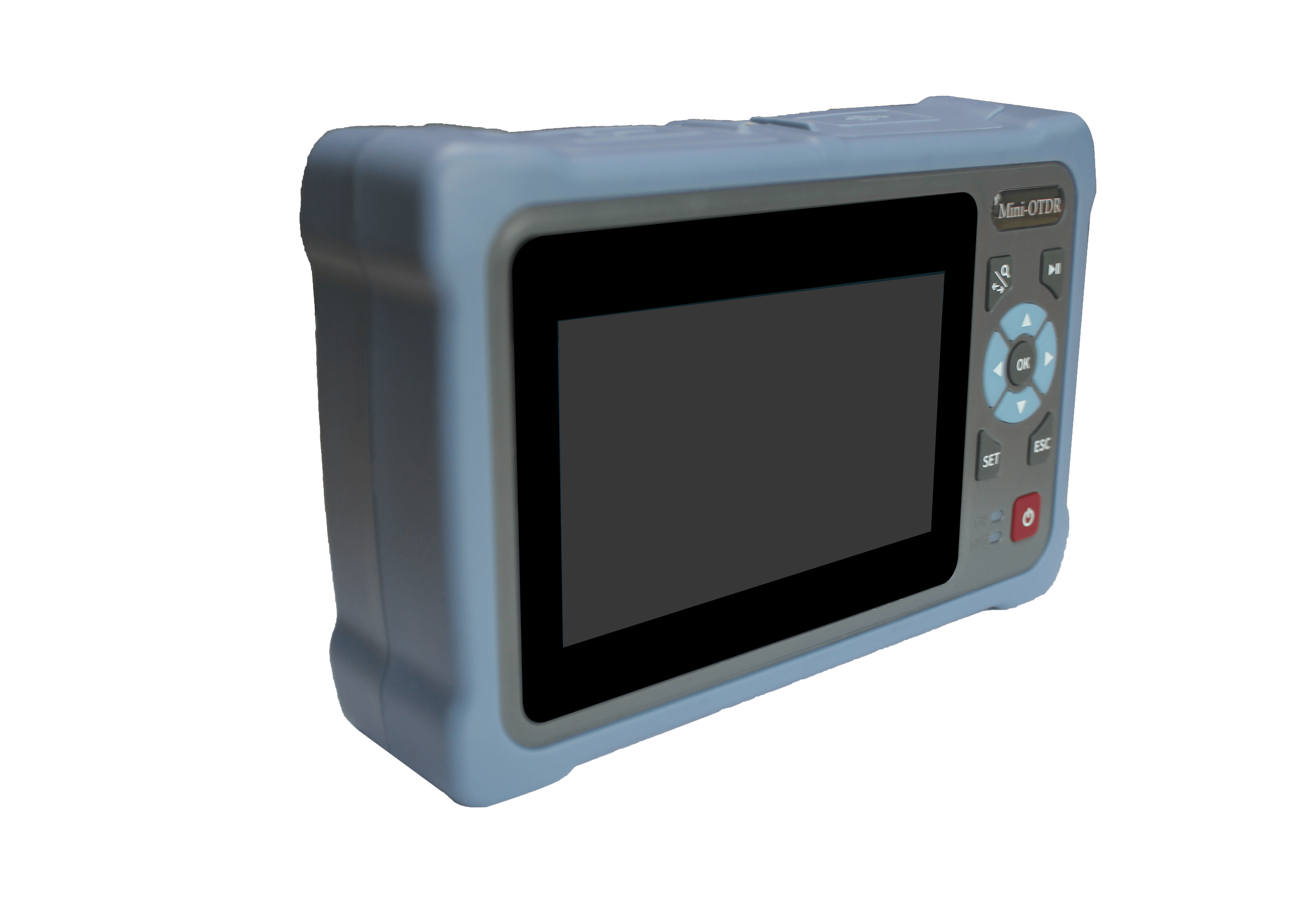

OTDR MINI Pro NK4000D

NK4000 series OTDR adopts 4.3-inch capacitive touchscreen.lt integrates 12 functions, such as auto OTDR, expertOTDR, event map, OPM, RJ45 cable tracker, and"computerlevel" file management to meet various test requirements indifferent occasions. OTDR has a maximum dynamic range of26dB, 8G memory, and can store more than 200,000 curves; itis equipped with 4000mAh high-density polymer lithiumbattery,intelligent power saving management, measuringtime of more than 8 hours, and supporting power supply andcharging of the power bank.NK4000 series are used to measure the length, loss, connect蠍飈ワ坐on quality and other parameters of optical fiber. lt is widelvused in FTTX,secondary backbone network engineeringconstruction, maintenance and emergency repair test, andproduction measurement of optical fiber and cable.

KEY FEATURES
Expert OTDR:Professional measurement,curve/list/map are displayed simultaneously
OPM supports CW/270/330/1k/2kHz frequency identification
TLS supports CW/ modulation mode outputwith adjustable output power
Auto OTDR,expert OTDR,event map,OPM, LS.VFL,RJ45 cable tracking,RJ45 cable sequence,RJ45cable length,microscope, flashlight,optical loss test

Auto OTDR: no complex settings, one key test
VFL andlS can run in the background,multi task can be operated simultaneousl
RJ45 cable tracker of digital radar,stronger anti-jamming ability
RJ45 cable sequence/cable length test, up to 300m
One click screen capture,easy
to save theinterface

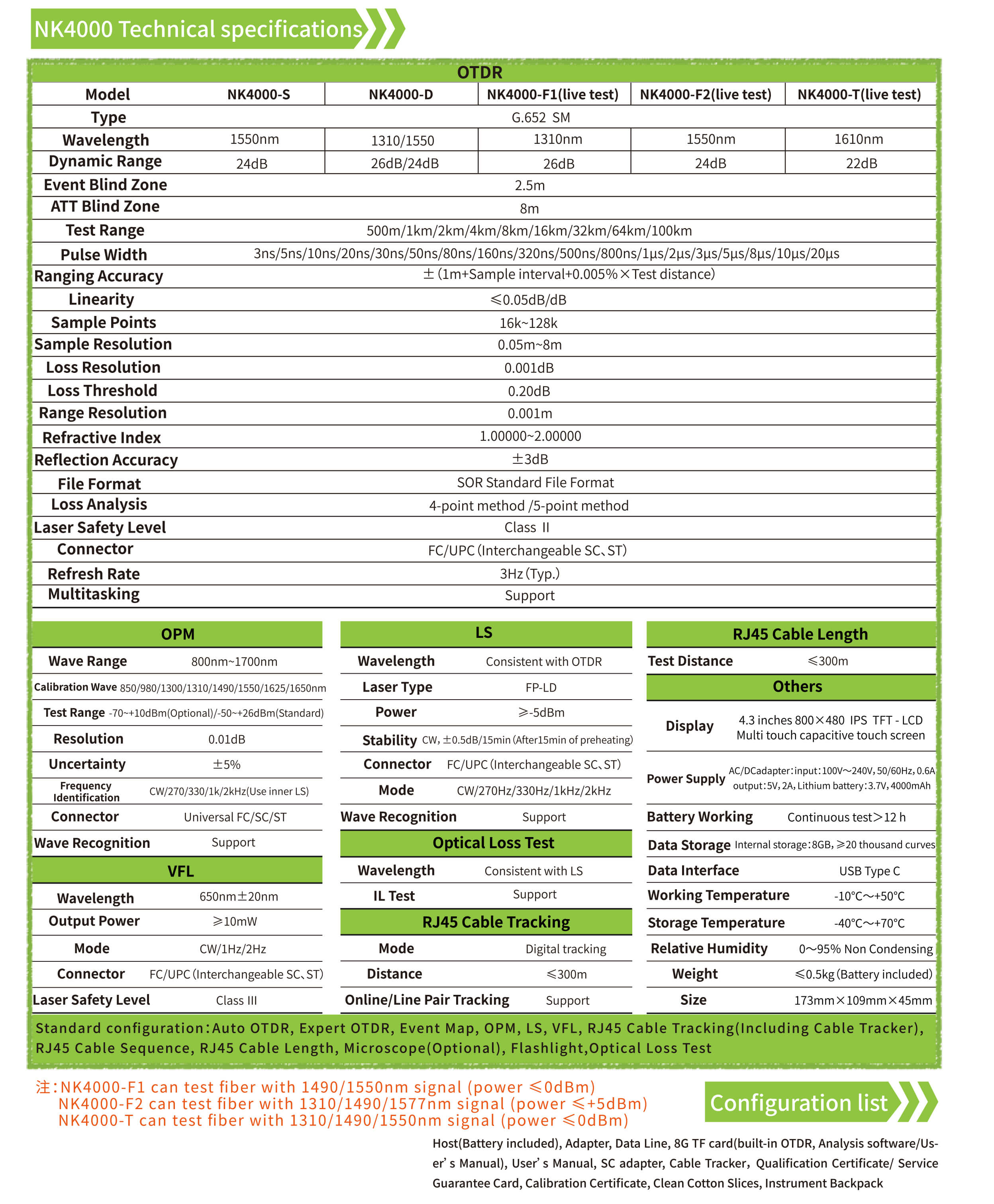

SPECIFICATIONS
