Fiber Optic Visual Fault Locater VFL

2.5mm universal connector
2Hz glint or continuous optput
Operates either in CW or Glint
Small size, easy to field test
High quality pen type visual fault locator
Easy identification of fiber break,bend, you can protect the fiber layer
To-end fiber identification
Complete mechanical connecting point detection and optimization
Crash-proof and dust-proof design for laser head
Portable and rugged, easy to use
Possess a power saving mode, the instrument automatically shut off the power afte

Fiber Optic Visual Fault Locater VFL

Feature:

2.5mm universal connector
2Hz glint or continuous optput
Operates either in CW or Glint
Small size, easy to field test
High quality pen type visual fault locator
Easy identification of fiber break,bend, you can protect the fiber layer
To-end fiber identification
Complete mechanical connecting point detection and optimization
Crash-proof and dust-proof design for laser head
Portable and rugged, easy to use
Possess a power saving mode, the instrument automatically shut off the power after idle for 10 minutes.

Specification

Wavelength	650nm±10nm
Light source	FP-LD laser

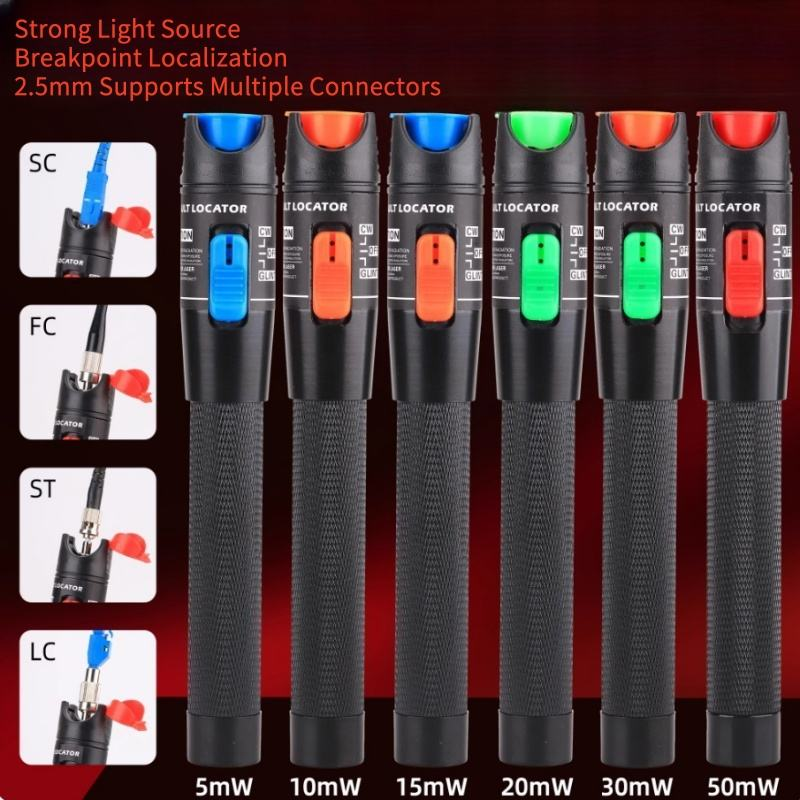

Output power	1mw,10mw,20mw,25mW,30mW,50mW (optional)
Connector	2.5mm universal adapter
Working mode	CW or 2Hz modulation
Operating temperature	0~+60 °C
Storage temperature	-25~+70 °C
Power	2pcs AA battery
Working hours	≥10

Application:
- Telecom, CATV engineering and maintenance
- integrated wiring construction and maintenance
- The production and research of optical devices
- other optical engineering



Packaging informations:

1pcs/inner box, 20pcs/carton
